Sealed Marker Light Pigtails

Grote Loading Ajax Spinner

66800Single Seal, Chassis Ground, Slim-Line 6" Wire

66800Single Seal, Chassis Ground, Slim-Line 6" Wire

  • 66800 thumbnail

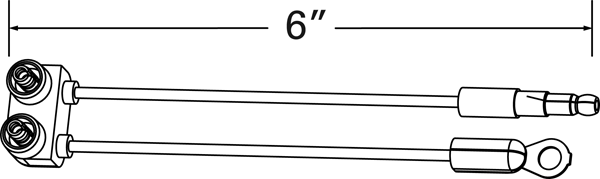

  • 66800 - drawing thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Connector Quantity: 3
  • Connector Side One: Ring Terminal/Slim-Line .180" Male Bullet
  • Connector Side Two: PL-10
  • Wire Material: GPT
  • Wire Gauge: 14 GA
  • Connection Type: Slim-Line .180" Male Bullet/Ring terminal, PL-10
  • Length: 6"
  • Wire Length: 5"
  • Fits: 2" and 2 1/2" Round marker Lamps
  • Pack Quantity: Individual (12 per carton)
  • VMRS: 034-004-042
  • Product Type: Pigtail
  • # of Wires: 2
  • Seal Type: Single
  • Style: Pigtail
  • Warranty: 1 Year
Features & benefits
  • Sealed to resist corrosion
  • Slim-line .180" male connector
  • Factory-molded plugs for use with ULTRA-BLUE-SEAL
  • Fits 2", 2½" round, and beehive-style LED and incandescent lamps
Find a Local Distributor

Replacements, Tools & Accessories

Clearance Marker red supernova 2 led clearance light retail
47112
 Clearance Marker 47212
47212
 Clearance Marker G3092
G3092
 Clearance Marker 47122
47122
 Clearance Marker 45812
45812
 Clearance Marker supernova 2 1/2 beehive led clearance marker light red
47222

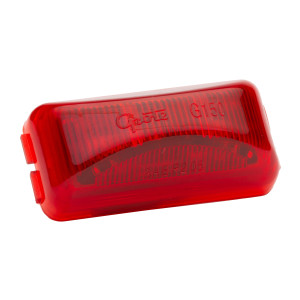

 Clearance Marker G1502
G1502
 Clearance Marker 46412
46412
 Clearance Marker supernova led clearance marker light reflector red
47502

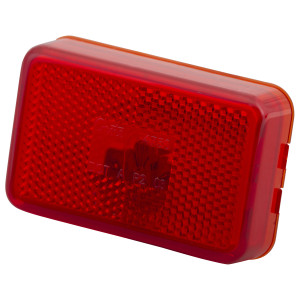

 Clearance Marker 45232
45232
 Clearance Marker G3093
G3093
 Clearance Marker 45813
45813
 Clearance Marker 45042
45042
 Clearance Marker 45043
45043
 Clearance Marker 45832
45832
 Clearance Marker 45833
45833
 Clearance Marker 78343
78343

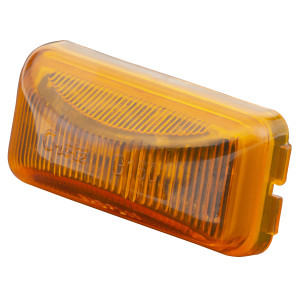

 Clearance Marker G1503
G1503
 Clearance Marker 46413
46413
 Clearance Marker 47123
47123
 Clearance Marker supernova 2 1/2 beehive led clearance marker light amber bulk pack
47223

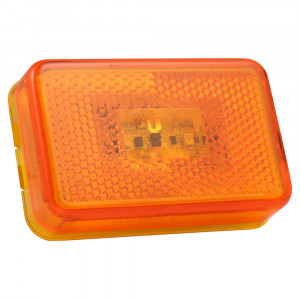

 Clearance Marker supernova led clearance marker light reflector amber
47503
 Clearance Marker 47113
47113
 Clearance Marker 47322
47322
 Clearance Marker 47323
47323
 Clearance Marker 46142
46142
 Clearance Marker 46132
46132
 Clearance Marker 46143
46143
 Clearance Marker 46133
46133
 Clearance Marker 47472
47472
 Clearance Marker 78433
78433
 Clearance Marker 78423
78423

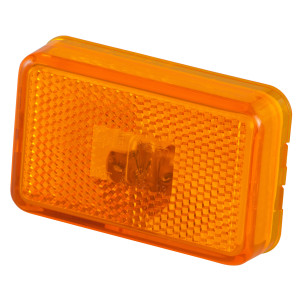

 Clearance Marker 45233
45233
 Clearance Marker 45812-5
45812-5
 Clearance Marker 45813-5
45813-5
 Clearance Marker 46422-5
46422-5
 Clearance Marker 3 clearance marker light amber
46423-5
 Fits G3002
G3002
 Fits 45822
45822
 Fits 47232
47232
 Fits G1032
G1032
 Fits G1092
G1092
 Fits G1082
G1082
 Fits LED Clearance Marker Light
47082

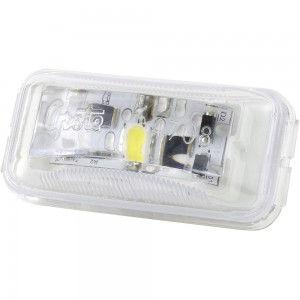

 Fits small rectangular led utility light clear
60421
 Fits 45823
45823
 Fits 78333
78333
 Fits G3003
G3003
 Fits G1083
G1083
 Fits 47233
47233

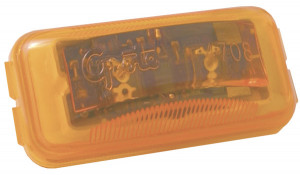

 Fits 3 supernova led clearance marker light amber
47083
 Fits 47372
47372
 Fits G1033
G1033
 Fits Optic Clearance Marker light Red with Clear Lens
G1042
 Fits G1043
G1043
 Fits G1002
G1002
 Fits G1003
G1003
 Fits G1093
G1093
 Fits 45822-5
45822-5
 Fits retail 2 clearance marker light amber
45823-5

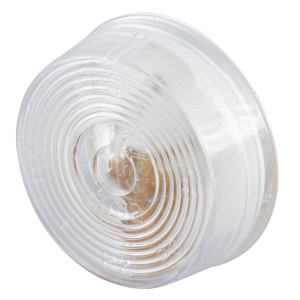

 Lamp 45821
45821
 Lamp 45811
45811
 License Light 60261
60261
 License Light 60280
60280
 License Light 60460
60460

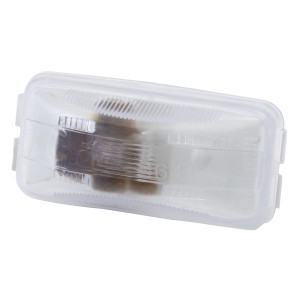

 Utility Light 60271
