Torsion Mount® III Oval Side Turn Marker Lights

Grote Loading Ajax Spinner

52533Male Pin

52533Male Pin

  • 52533 360 thumbnail
  • 52533 thumbnail

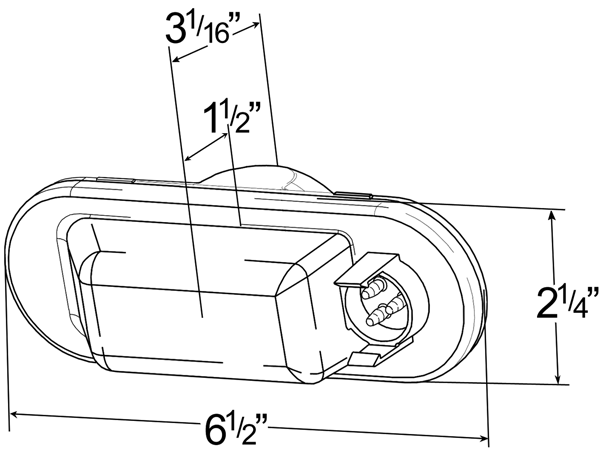

  • Grote product drawing - torsion mount III oval side turn marker light thumbnail
  • 52533 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

LED Icon

54183
SuperNova® Oval LED Side Turn Marker Light

Technical specifications
  • Material: Polycarbonate Lens, Polycarbonate Housing
  • Color: Amber
  • Lens Color: Amber
  • Housing Color: Gray
  • Voltage: 12V
  • Amperage: .59A-2.1A
  • Mounting Type: Grommet
  • Connection Type: Male Pin
  • Regulations: FMVSS 108
  • Functions: A, E, P2, P3
  • Bulb: 1157, 32, 3 CP
  • VMRS: 034-003-097
  • Product Type: Side Turn Marker Lamp
  • Product Line: Torsion Mount®
  • Shape: Oval
  • Warranty: 1 Year
Features & benefits
  • Contains reflex reflector
  • Torsion Mount® III, Gel-Mount® bulb cradle design minimizes bulb vibrations
  • Exceeds SAE J914, Nov. '87
  • Fits standard oval lamp grommets and brackets
  • Extended dome for added visibility from front and rear
Find a Local Distributor

Replacements, Tools & Accessories

Bracket 43362
43362
 Bracket 43952
43952
 Bracket 43220
43220
 Bracket 43223
43223
 Bracket 43222
43222
 Bracket 43100
43100
 Bracket 43723
43723
 Bracket 42152
42152
 Bracket 42153
42153
 Bracket Stainless Steel Security Ring
42103
 Grommet 92420
92420
 Grommet 92720
92720
 Pigtail 67013
67013
 Pigtail 67016
67016
 Pigtail 66842
66842
 Pigtail 66846
66846
 Pigtail STT 3-Wire 66815
66815
 Pigtail STT 3-Wire 66816
66816
 Pigtail STT 3-Wire 66841
66841
 Pigtail STT 3-Wire 66845
66845
 Pigtail STT 3-Wire 67005
67005

Customer reviews

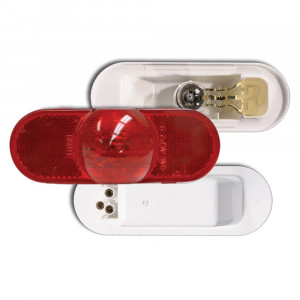

  • 52512

    I installed these lights on my snowmobile trailer about 20 years ago and I never had a problem, I give it 5 stars

    Gilles T Mar 09, 2018
