Torsion Mount® III Oval Side Turn Marker Lights

Grote Loading Ajax Spinner

52513Female Pin

52513Female Pin

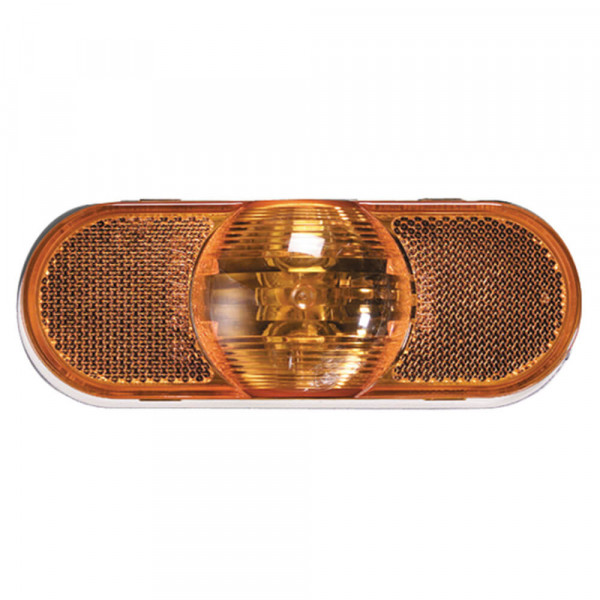

  • torsion mount III oval side turn marker light female pin amber thumbnail
  • Grote product drawing - Torsion Mount® III Oval Side Turn Marker Light with Female Pin thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

LED Icon

54183
SuperNova® Oval LED Side Turn Marker Light

Technical specifications
  • Material: Polycarbonate Housing, Polycarbonate Lens
  • Color: Amber
  • Lens Color: Amber
  • Housing Color: White
  • Voltage: 12V
  • Amperage: .59A-2.1A
  • Mounting Type: Grommet
  • Connection Type: Female Pin
  • Regulations: FMVSS 108
  • Functions: P2, P3, A, E
  • Bulb: 1157, 32, 3 CP
  • VMRS: 034-002-013
Features & benefits
  • Contains reflex reflector
  • Torsion Mount® III, Gel-Mount® bulb cradle design minimizes bulb vibrations
  • Exceeds SAE J914, Nov. '87
  • Fits standard oval lamp grommets and brackets
  • Extended dome for added visibility from front and rear
Find a Local Distributor

Replacements, Tools & Accessories

Bracket Mounting Bracket For 6" Oval Lights, 90° Angle Bracket, Black
43362
 Bracket "Z" Mounting Bracket For Oval Light
43952
 Bracket Theft-Resistant Mounting Flange For 6" Oval Lights, Gray
43220
 Bracket Theft-Resistant Mounting Flange For 6" Oval Lights, Chrome Plated
43223
 Bracket Theft-Resistant Mounting Flange For 6" Oval Lights, Black
43222
 Bracket Mounting Bracket For Oval Lights, Black
43100
 Bracket Theft-Resistant Mounting Flange For 6" Oval Lights, Steel
43723
 Bracket Surface-Mount Snap-In Flange For 6" Oval Lights, Polycarbonate, Black
42152
 Bracket Surface-Mount Snap-In Flange For 6" Oval Lights, Chrome
42153
 Bracket Stainless Steel Security Ring
42103
 Grommet Grommet For 6" Oval Lights, Open Grommet
92420
 Grommet Grommet For 6" Oval Lights, Closed Back
92720
 Pigtail
67020
 Pigtail Two-Wire Plug-In Pigtails for Female Pin Lights, 10" Long, Chassis Ground, Blunt Cut, 90° Plug
67014
 Pigtail STT 3-Wire Stop Tail Turn Three-Wire Plug-In Pigtails for Female Pin Lights, 8" Long, Ground Return, Slim-Line .180 Male
66825
 Pigtail STT 3-Wire Stop Tail Turn Three-Wire Plug-In Pigtails for Female Pin Lights, 11 1/2" Long, Chassis Ground, Blunt Cut Wires
67000
 Pigtail STT 3-Wire Stop Tail Turn Three-Wire Plug-In Pigtails for Female Pin Lights, 6" Long, Chassis Ground, Slim-Line .180 Male
66812
 Pigtail STT 3-Wire 66844 - Stop Tail Turn Three-Wire 90º Plug-In Pigtails for Female Pin Lights, 18" Long, Ground Return, Slim-Line .180 Male
66844
 Pigtail STT 3-Wire 66843 - Stop Tail Turn Three-Wire 90º Plug-In Pigtails for Female Pin Lights, 18" Long, Chassis Ground, Blunt Cut Wires, Star Ring Terminal
66843
 Pigtail STT 3-Wire 66811 - Stop Tail Turn Three-Wire 90º Plug-In Pigtails for Female Pin Lights, 18" Long, Chassis Ground, Slim-Line .180 Male, Star Ring Terminal
66811
 Pigtail STT 3-Wire
67090
