SuperNova® 4" Full-Pattern LED Stop Tail Turn Lights

Grote’s SuperNova® Full-Pattern Stop Tail Turn Lights are available in a variety of mounting & voltage options. They come in both red and amber, and feature a potted circuit board for full protection. These lights are built with tin-plated, solid-brass pin terminations for top-of-the-line performance.
Grote Loading Ajax Spinner

55103Rear Turn, Grommet Mount, Male Pin

55103Rear Turn, Grommet Mount, Male Pin

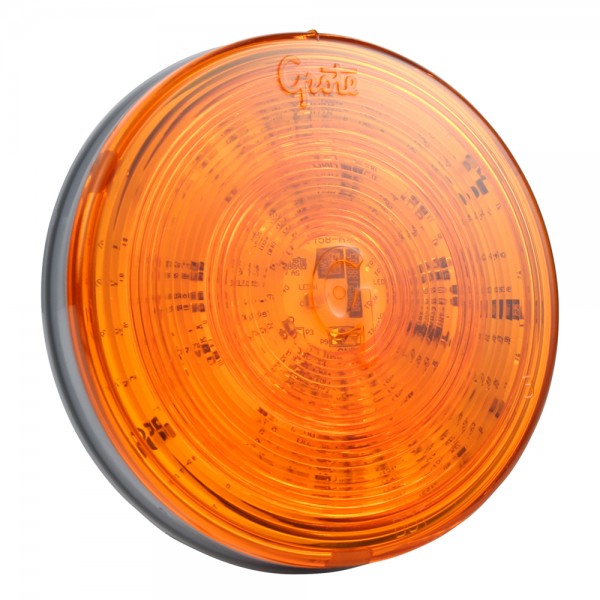

  • SuperNova® 4" Full-Pattern LED Stop Tail Turn Lights, Rear Turn, Grommet Mount, Male Pin thumbnail

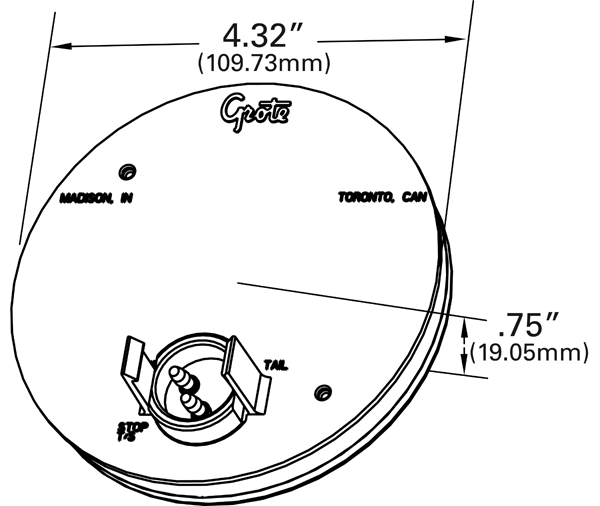

  • Grote product drawing - LED Rear Turn Light thumbnail

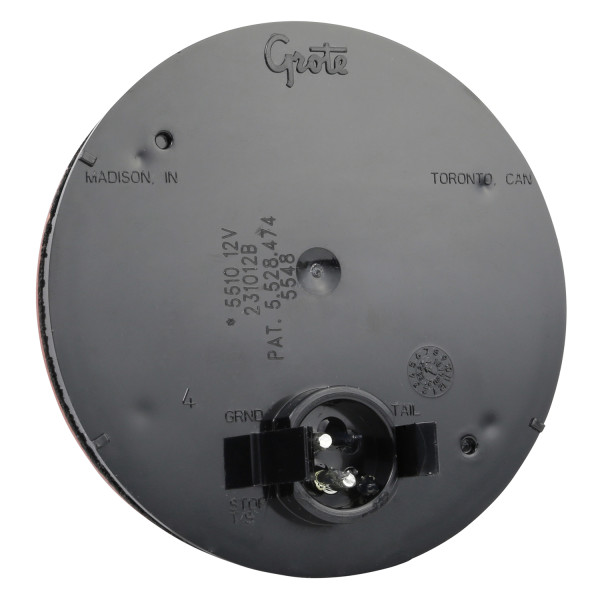

  • SuperNova® 4" Full-Pattern LED Stop Tail Turn Lights, Rear Turn, Grommet Mount, Male Pin, Back thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Color: Amber
  • Product Line: SuperNova®
  • Voltage: 12V
  • Mounting Type: Bracket
  • Connection Type: Male Pin
  • Lens Color: Amber
  • Shape: Round
  • Amperage: .1A (Tail); .96A (Stop)
  • Size: 4"
  • Functions: P2, I
  • Regulations: FMVSS 108
  • VMRS: 034-002-059
  • Material: Polycarbonate/ABS Housing, Polycarbonate Lens
  • Product Type: Rear Turn Light
  • Diameter: 4"
  • Housing Color: Gray
  • Warranty: 10 Years
Features & benefits
  • Hermetic lens-to-housing seal
  • Potted for total circuit board protection
  • Advanced pin connection system uses tin-plated, solid-brass pin terminations
