SuperNova® 4" 10-Diode Pattern LED Stop Tail Turn Lights

Grote Loading Ajax Spinner

53303Theft-Resistant Flange, Male Pin, Auxiliary Turn

53303Theft-Resistant Flange, Male Pin, Auxiliary Turn

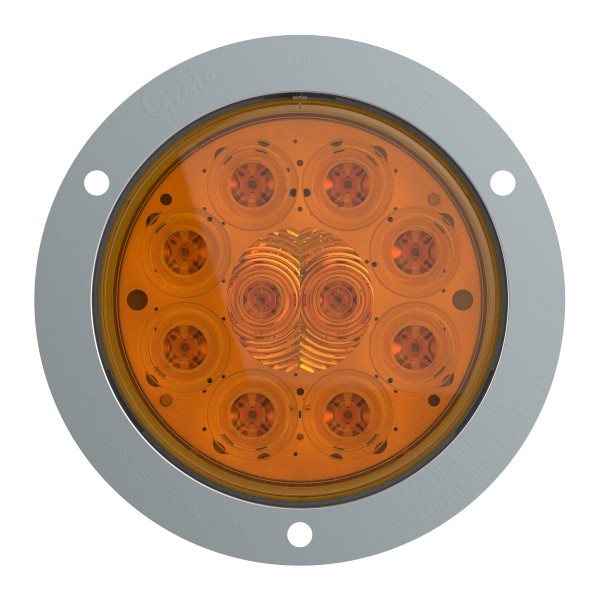

  • SuperNova® 4" 10-Diode Pattern LED Stop Tail Turn Lights, Theft-Resistant Flange, Male Pin, Auxiliary Turn 360 thumbnail
  • SuperNova® 4" 10-Diode Pattern LED Stop Tail Turn Lights, Theft-Resistant Flange, Male Pin, Auxiliary Turn thumbnail

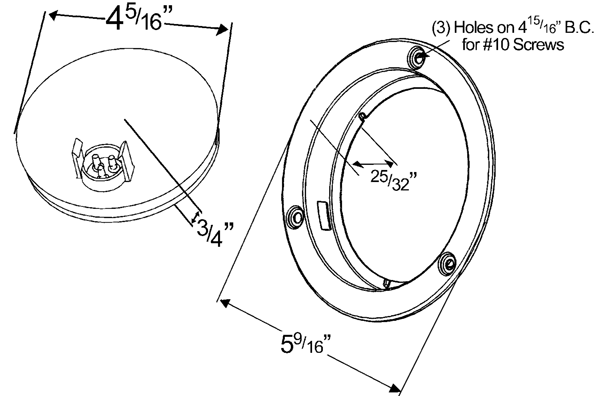

  • Grote product drawing - LED Stop Tail Turn Light With Theft Resistant Flange thumbnail

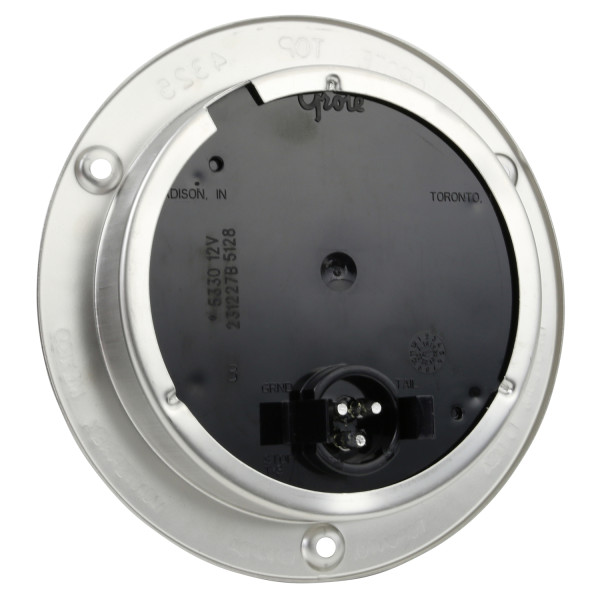

  • SuperNova® 4" 10-Diode Pattern LED Stop Tail Turn Lights, Theft-Resistant Flange, Male Pin, Auxiliary Turn, Back thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Acrylic Lens, Polycarbonate/ABS Housing, Stainless Steel Flange
  • Color: Amber
  • Lens Color: Amber
  • Housing Color: Gray
  • Voltage: 12V
  • Amperage: .15A
  • Mounting Type: Grommet
  • Connection Type: Male Pin
  • Size: 4"
  • Regulations: FMVSS 108
  • Functions: P2
  • VMRS: 034-002-059
  • Diameter: 4"
  • Product Type: Auxiliary Turn
  • Product Line: SuperNova®
  • Shape: Round
  • Warranty: 10 Years
Features & benefits
  • Hermetic lens-to-housing seal
  • Encapsulant potting for total circuit board protection
  • Uses same UBS pigtail as male pin incandescent
  • Lens design spreads light for maximum dispersion
  • Advanced Pin Connection System uses tin-plated, solid-brass pin terminals
Find a Local Distributor

Replacements, Tools & Accessories

Bracket 93552
93552
 Grommet 91740
91740
 Grommet 91950
91950
 Pigtail STT 3-Wire 66815
66815
 Pigtail STT 3-Wire 67002
67002
 Pigtail STT 3-Wire 66841
66841
 Pigtail STT 3-Wire 66816
66816
 Pigtail STT 3-Wire 67005
67005
 Pigtail STT 3-Wire 66845
66845
 Adapter Pigtail 66813
66813
 Adapter Pigtail 66830
66830
 Adapter Pigtail 66836
66836
 Bracket 51090
51090
 Bracket 92511
92511
 Bracket 43253
43253
 Bracket 92510
92510
 Bracket 92512
92512
 Bracket 43572
43572
 Bracket 43655
43655
 Bracket 43732
43732
 Bracket 93190
93190
 Bracket 93553
93553
 Bracket 93683
93683
 Adapter Pigtail 67006
67006
