6" Oval LED Stop Tail Turn Lights with Integrated Back-up

The 6” Oval LED Stop/Tail/Turn and Back-up light seamlessly combines two separate lights. Symmetrical and sleek, the innovative 6” Oval LED lowers inventory and maintenance costs while saving space for other controls on box trucks, vocational trucks, and specialized vehicles. This light can also replace a Back-up light on power modules.
Grote Loading Ajax Spinner

54762Female Pin Termination, 12V

54762Female Pin Termination, 12V

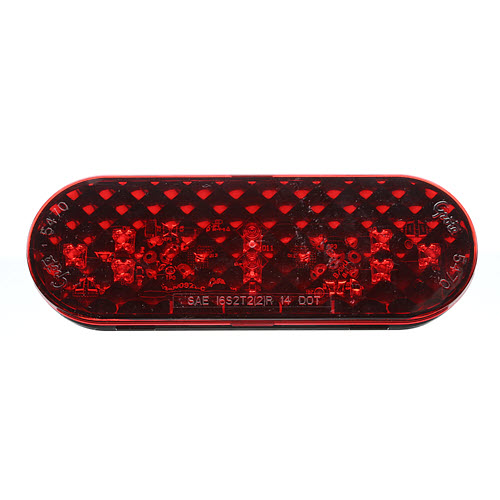

  • 6 Inch Oval Red LED Stop Tail Turn Light With Female Pin Termination. 360 thumbnail
  • 6 Inch Oval Red LED Stop Tail Turn Light With Female Pin Termination. thumbnail

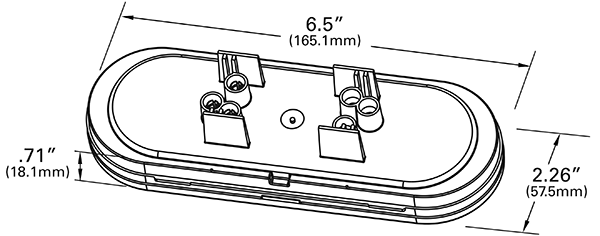

  • Grote product drawing - 6" Oval Stop Tail Turn Light with Female Pin Termination thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Acrylic Lens, ABS Housing
  • Color: Red
  • Lens Color: Red
  • Housing Color: Black
  • Voltage: 12V
  • Amperage: .13A-.17A
  • Mounting Type: Bracket
  • Connection Type: Female Pin
  • Size: 6"
  • Regulations: FMVSS 108
  • Functions: I, S, T
  • VMRS: 034-002-059
  • Product Type: Stop Tail Turn
  • Shape: Oval
  • Warranty: 2 Years
Features & benefits
  • Thin profile design minimizes chance of external impact damage
  • LED technology provides less maintenance costs and long life
  • Industry-standard design fits existing mounting grommets, brackets, and flanges
  • Symmetrical design meets legal requirements at any mounting angle
Find a Local Distributor

Application photos

4in1 6" Oval LED Stop Tail Turn Light with Integrated Backup on truck 4in1 6" Oval LED Stop Tail Turn Light with Integrated Backup on truck 4in1 6" Oval LED Stop Tail Turn Light with Integrated Backup on truck 4in1 6" Oval LED Stop Tail Turn Light with Integrated Backup on truck
