6" Oval LED Stop Tail Turn Lights with Integrated Back-up

The 6” Oval LED Stop/Tail/Turn and Back-up light seamlessly combines two separate lights. Symmetrical and sleek, the innovative 6” Oval LED lowers inventory and maintenance costs while saving space for other controls on box trucks, vocational trucks, and specialized vehicles. This light can also replace a Back-up light on power modules.
Grote Loading Ajax Spinner

54702Integrated Hard Shell

54702Integrated Hard Shell

  • 54702 thumbnail

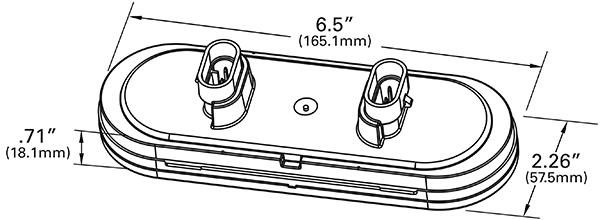

  • Grote product drawing - six inch oval stop tail turn with back up light thumbnail
  • 54702 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Acrylic Lens, ABS Housing
  • Color: Red, Clear
  • Lens Color: Red/Clear
  • Housing Color: Black
  • Voltage: 12V
  • Amperage: .13A-.16A
  • Mounting Type: Grommet, Bracket
  • Connection Type: Hardshell
  • Size: 6"
  • Regulations: FMVSS 108
  • Functions: I, S, T, R(2)
  • VMRS: 034-002-059
  • Product Type: Stop Tail Turn
  • Shape: Oval
  • Warranty: 10 Years
Features & benefits
  • Innovative patent-pending design combines all Stop/Tail/Turn and Back-up functions into one industry standard size lamp.
  • Industry-standard design fits existing mounting grommets, brackets, and flanges.
  • Symmetrical design meets legal requirements at any mounting angle.
  • LED technology provides less maintenance costs and long life.
  • Reduces inventory, SKUs, and carrying costs.
Find a Local Distributor

Replacements, Tools & Accessories

Pigtail 66861
66861
 Pigtail 66862
66862

Application photos

4in1 6" Oval LED Stop Tail Turn Light with Integrated Backup on truck 4in1 6" Oval LED Stop Tail Turn Light with Integrated Backup on truck 4in1 6" Oval LED Stop Tail Turn Light with Integrated Backup on truck 4in1 6" Oval LED Stop Tail Turn Light with Integrated Backup on truck
