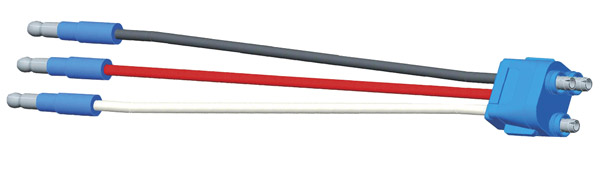

Stop Tail Turn Three-Wire Plug-In Pigtails for Female Pin Lights

Grote Loading Ajax Spinner

668258" Long

668258" Long

  • 66825 thumbnail
  • 66825 - drawing thumbnail
  • 66825 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Wire Material: GPT
  • Connector Quantity: 4
  • Connector Side One: Slim-Line .180" Male Bullet
  • Connector Side Two: Straight Male PL-3
  • Wire Gauge: 16 GA
  • Connection Type: Slim Line .180" Male Bullets, Male PL-3

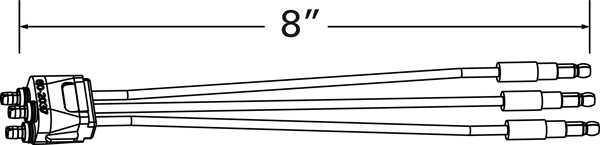

  • Length: 2/3' (8")
  • Wire Length: 7"
  • Fits: Female pin Lamps
  • Pack Quantity: Individual (12), Bulk
  • VMRS: 034-002-031
  • Product Type: Stop Tail Turn
  • # of Wires: 3
  • Style: Pigtail
  • Warranty: 1 Year
Features & benefits
  • Slim-Line .180 Male
  • Dual function for S/T/T lamps, blunt-cut wires
  • Dual function for S/T/T lamps
  • Factory-molded plugs for ULTRA-BLUE-SEAL® trailer wiring system
