Hi Count® Oval LED Stop Tail Turn Lights

Grote's Hi Count® Oval LED Stop Tail Turn Lights have lower amp draw LEDs allowing for use of more lamps without draining vehicle power.
Grote Loading Ajax Spinner

G6002Red

G6002Red

  • G6002 360 thumbnail
  • G6002 thumbnail

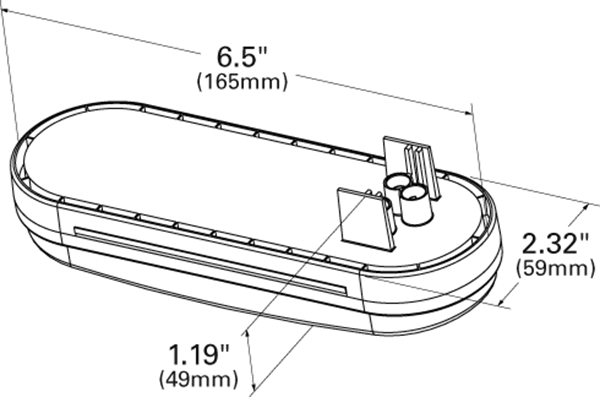

  • G6002 Line Drawing thumbnail

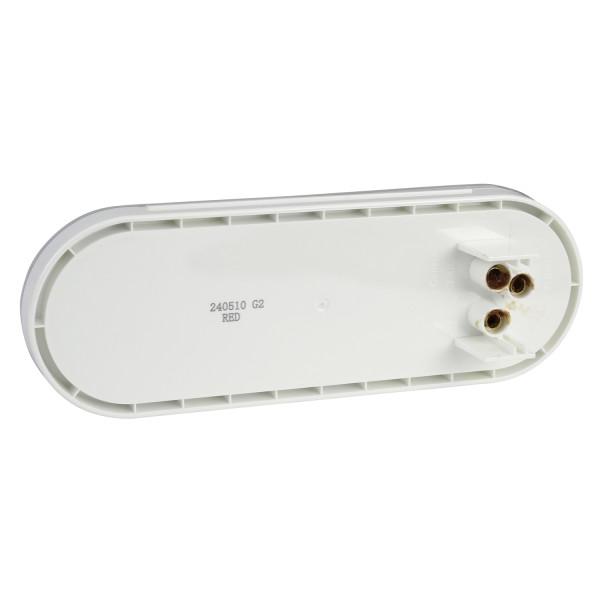

  • G6002 back thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polycarbonate Lens, Polycarbonate Housing
  • Color: Red
  • Lens Color: Red
  • Housing Color: White
  • Voltage: 12V
  • Amperage: 0.01–0.37 A
  • Mounting Type: Grommet, Bracket
  • Connection Type: Female Pin
  • Size: 6"
  • Regulations: FMVSS 108
  • Functions: I6, P2, S2, T2
  • VMRS: 034-002-059
  • Product Type: Stop Tail Turn
  • Product Line: Hi Count®
  • Shape: Oval
  • Warranty: 2 Years
  • Bulk Pack #G6002-3: 50
Features & benefits
  • Fits same connections as female incandescent lamps
  • LEDs provide greater stopping distance for trailing vehicles
  • Female pin connection accepts all popular plug-in connectors
  • Lower amp draw of LEDs allows for use of more lamps without draining vehicle power
Find a Local Distributor

Replacements, Tools & Accessories

Bracket 43362
43362
 Grommet 92420
92420
 Pigtail STT 3-Wire 66825
66825
 Pigtail STT 3-Wire 67000
67000
 Pigtail STT 3-Wire 66812
66812
 Pigtail STT 3-Wire 66844
66844
 Pigtail STT 3-Wire 66843
66843
 Pigtail STT 3-Wire 66811
66811
 Pigtail STT 3-Wire 67090
67090
 Grommet 92720
92720
 Bracket Stainless Steel Security Ring
42103
 Bracket 43952
43952
 Bracket 43220
43220
 Bracket 43223
43223
 Bracket 43222
43222
 Bracket 43100
43100
 Bracket 43723
43723
 Bracket 42152
42152
 Bracket 42153
42153
