    Hi Count® Oval LED Stop Tail Turn Lights

    Grote's Hi Count® Oval LED Stop Tail Turn Lights have lower amp draw LEDs allowing for use of more lamps without draining vehicle power.
    Grote Loading Ajax Spinner

    G6012Red w/ Clear Lens

    G6012Red w/ Clear Lens

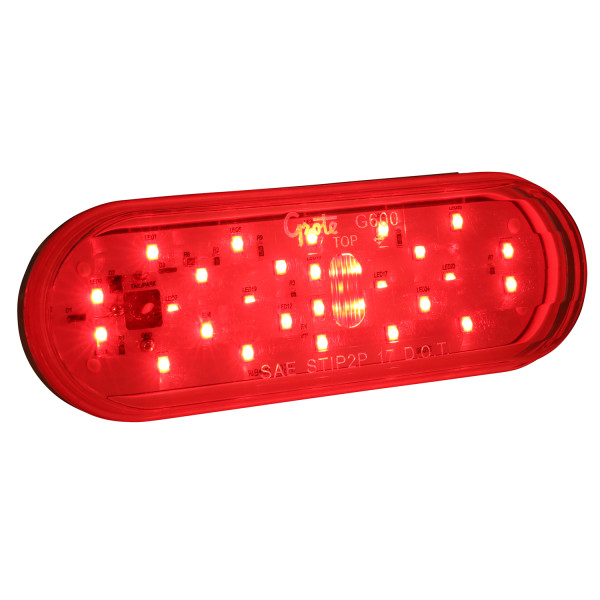

    • 56-Diode Oval LED Stop Tail Turn Light thumbnail

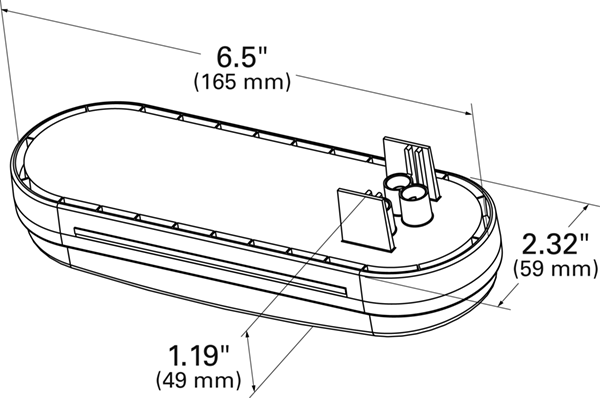

    • G6012 Line Drawing thumbnail
    • G6012 Split thumbnail

    Compare

    0 Product Added

    Compare

    Quickly compare up to 5 Grote products...

    pdf spinner


    Add more products to compare

    Technical specifications
    • Material: Polycarbonate Housing, Polycarbonate Lens
    • Color: Red
    • Lens Color: Red
    • Housing Color: White
    • Voltage: 12V
    • Amperage: .05A-.4A
    • Mounting Type: Bracket
    • Connection Type: Female Pin
    • Size: 6"
    • Regulations: FMVSS 108
    • Functions: P2, I6, S2, T2
    • VMRS: 034-002-059
    Features & benefits
    • Fits same connections as female incandescent lamps
    • LEDs provide greater stopping distance for trailing vehicles
    • Female pin connection accepts all popular plug-in connectors
    • Lower amp draw of LEDs allows for use of more lamps without draining vehicle power

    Replacements, Tools & Accessories

    Bracket Mounting Bracket For 6" Oval Lights, 90° Angle Bracket, Black
    43362
     Bracket "Z" Mounting Bracket For Oval Light
    43952
     Bracket Theft-Resistant Mounting Flange For 6" Oval Lights, Gray
    43220
     Bracket Theft-Resistant Mounting Flange For 6" Oval Lights, Chrome Plated
    43223
     Bracket Theft-Resistant Mounting Flange For 6" Oval Lights, Black
    43222
     Bracket Mounting Bracket For Oval Lights, Black
    43100
     Bracket Theft-Resistant Mounting Flange For 6" Oval Lights, Steel
    43723
     Bracket Surface-Mount Snap-In Flange For 6" Oval Lights, Polycarbonate, Black
    42152
     Bracket Surface-Mount Snap-In Flange For 6" Oval Lights, Chrome
    42153
     Bracket Stainless Steel Security Ring
    42103
     Grommet Grommet For 6" Oval Lights, Closed Back
    92720
     Grommet Grommet For 6" Oval Lights, Open Grommet
    92420
     Pigtail STT 3-Wire Stop Tail Turn Three-Wire Plug-In Pigtails for Female Pin Lights, 8" Long, Ground Return, Slim-Line .180 Male
    66825
     Pigtail STT 3-Wire Stop Tail Turn Three-Wire Plug-In Pigtails for Female Pin Lights, 11 1/2" Long, Chassis Ground, Blunt Cut Wires
    67000
     Pigtail STT 3-Wire Stop Tail Turn Three-Wire Plug-In Pigtails for Female Pin Lights, 6" Long, Chassis Ground, Slim-Line .180 Male
    66812
     Pigtail STT 3-Wire 66844 - Stop Tail Turn Three-Wire 90º Plug-In Pigtails for Female Pin Lights, 18" Long, Ground Return, Slim-Line .180 Male
    66844
     Pigtail STT 3-Wire 66843 - Stop Tail Turn Three-Wire 90º Plug-In Pigtails for Female Pin Lights, 18" Long, Chassis Ground, Blunt Cut Wires, Star Ring Terminal
    66843
     Pigtail STT 3-Wire 66811 - Stop Tail Turn Three-Wire 90º Plug-In Pigtails for Female Pin Lights, 18" Long, Chassis Ground, Slim-Line .180 Male, Star Ring Terminal
    66811
     Pigtail STT 3-Wire
    67090
