Hi Count® 4" LED Stop Tail Turn Lights

Grote Loading Ajax Spinner

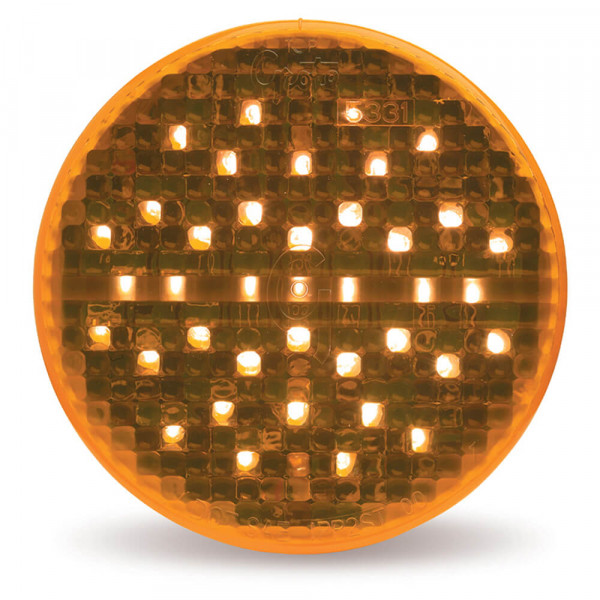

G4003Auxiliary

G4003Auxiliary

  • G4003 thumbnail

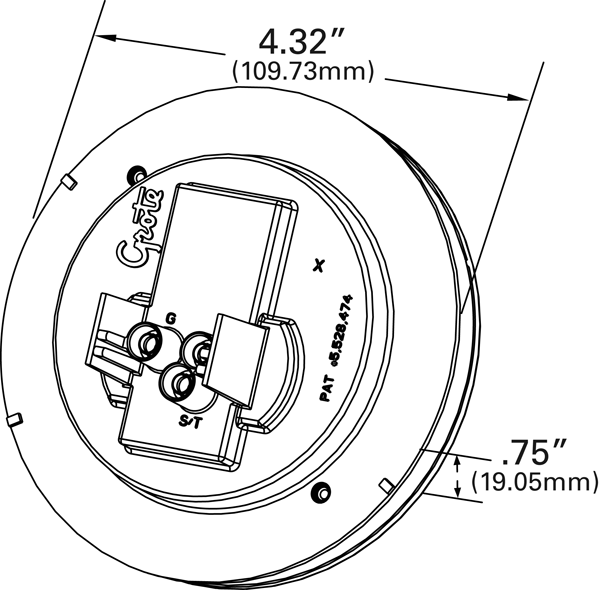

  • Grote product drawing - 4" led stop tail turn auxiliary light thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Color: Amber
  • Voltage: 12V
  • Mounting Type: Grommet, Bracket
  • Connection Type: Female Pin
  • Lens Color: Amber
  • Shape: Round
  • Amperage: .1A (Tail); .96A (stop)
  • Size: 4"
  • Functions: I
  • Regulations: FMVSS 108
  • VMRS: 034-002-059
  • Material: Acrylic Lens, ABS Housing
  • Product Type: Auxiliary Lamp
  • Diameter: 4"
  • Housing Color: White
  • Bulk Pack #G4003-3: 48
Features & benefits
  • Concentric, high-count 45-diode design
  • Fits all popular mountings and grommets
  • Standard female connection accepts all popular plug-in connectors
Find a Local Distributor

Replacements, Tools & Accessories

Bracket Mounting Bracket For 4" Round Lights, 90° Angle, Black
43572
 Pigtail STT 3-Wire 66811 - Stop Tail Turn Three-Wire 90º Plug-In Pigtails for Female Pin Lights, 18" Long, Chassis Ground, Slim-Line .180 Male, Star Ring Terminal
66811

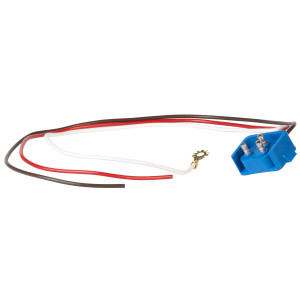

 Pigtail STT 3-Wire 66843 - Stop Tail Turn Three-Wire 90º Plug-In Pigtails for Female Pin Lights, 18" Long, Chassis Ground, Blunt Cut Wires, Star Ring Terminal
66843
 Pigtail STT 3-Wire 66844 - Stop Tail Turn Three-Wire 90º Plug-In Pigtails for Female Pin Lights, 18" Long, Ground Return, Slim-Line .180 Male
66844
 Pigtail STT 3-Wire Stop Tail Turn Three-Wire Plug-In Pigtails for Female Pin Lights, 6" Long, Chassis Ground, Slim-Line .180 Male
66812

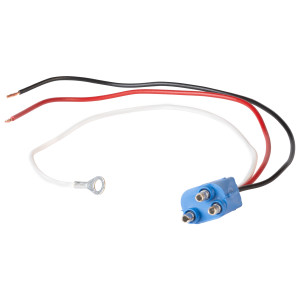

 Pigtail STT 3-Wire Stop Tail Turn Three-Wire Plug-In Pigtails for Female Pin Lights, 11 1/2" Long, Chassis Ground, Blunt Cut Wires
67000

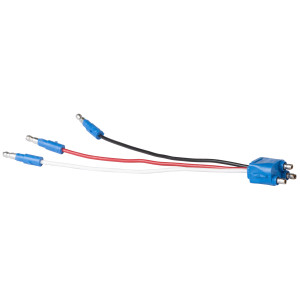

 Pigtail STT 3-Wire Stop Tail Turn Three-Wire Plug-In Pigtails for Female Pin Lights, 8" Long, Ground Return, Slim-Line .180 Male
66825
 Grommet Closed Back Grommet For 4" Round Lights, Black
91950
 Grommet Grommet For 4" Round Lights, Open Grommet
91740
 Bracket Mounting Module For 4" Round Lights, Yellow Zinc
43655
 Bracket Mounting Module For 4" Round Lights, Black
43732
 Bracket Theft-Resistant Flange For 4" Round Lights, Black
92512
 Bracket Theft-Resistant Flange For 4" Round Lights, White
92510
 Bracket Theft-Resistant Flange For 4" Round Lights, Steel
43253
 Pigtail STT 3-Wire
67090
