Torsion Mount® II 4" Stop Tail Turn Lights

Grote Loading Ajax Spinner

52770Clear Housing, Female Pin

52770Clear Housing, Female Pin

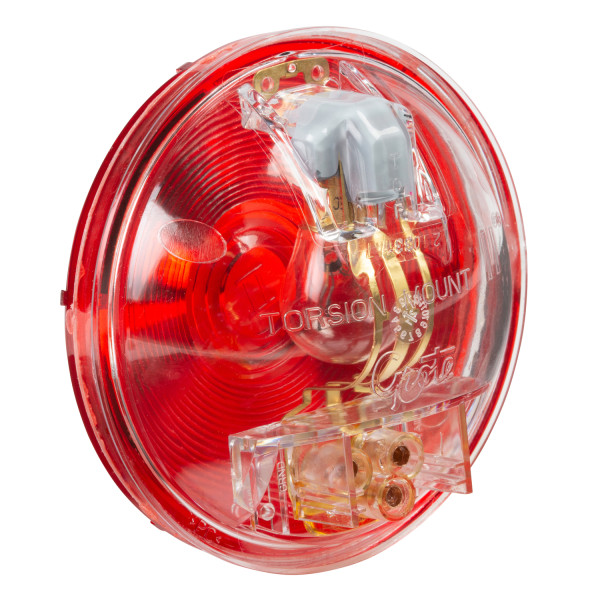

  • torsion mount stop tail turn lamp female pin red 360 thumbnail

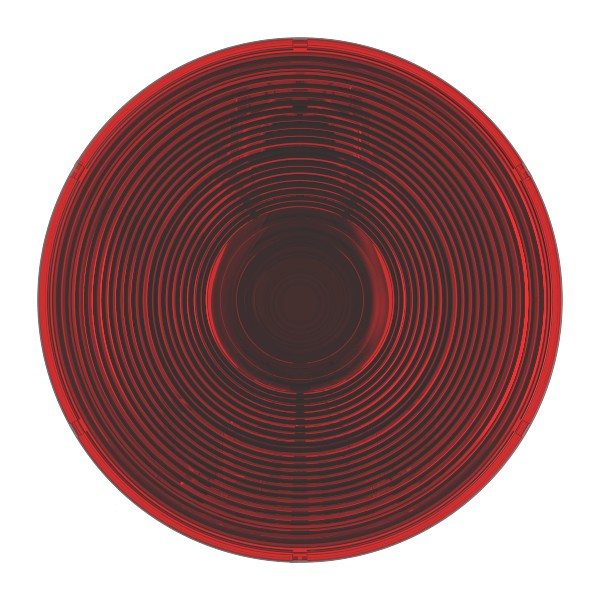

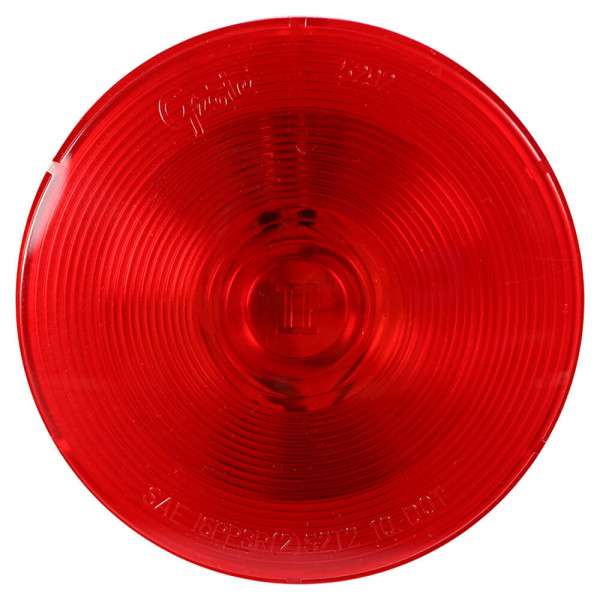

  • torsion mount stop tail turn lamp female pin red thumbnail

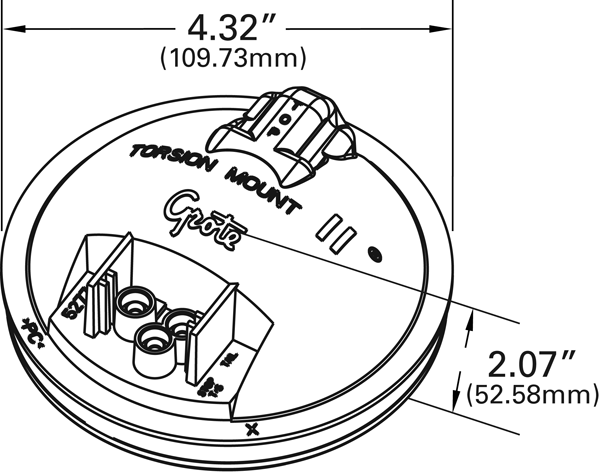

  • drawing of grote torsion mount stop tail turn lamp with female pin thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polycarbonate Housing, Polycarbonate Lens
  • Color: Red
  • Lens Color: Red
  • Housing Color: Clear
  • Voltage: 12V
  • Amperage: .5A-2.1A
  • Mounting Type: Grommet, Bracket
  • Connection Type: Female Pin
  • Size: 4"
  • Regulations: FMVSS 108
  • Functions: P2, S, T, I
  • Bulb: 32, 2 CP
  • VMRS: 034-002-058
  • Diameter: 4"
Features & benefits
  • Female Pin termination
  • Torsion Mount® II, Gel-Mount® bulb cradle design
  • Heavy-duty bulb provides greater reliability
Find a Local Distributor

Replacements, Tools & Accessories

Bracket Mounting Bracket For 4" Round Lights, 90° Angle, Black
43572
 Pigtail
67020
 Pigtail STT 3-Wire
67090
 Pigtail STT 3-Wire 66811 - Stop Tail Turn Three-Wire 90º Plug-In Pigtails for Female Pin Lights, 18" Long, Chassis Ground, Slim-Line .180 Male, Star Ring Terminal
66811
 Pigtail STT 3-Wire 66843 - Stop Tail Turn Three-Wire 90º Plug-In Pigtails for Female Pin Lights, 18" Long, Chassis Ground, Blunt Cut Wires, Star Ring Terminal
66843
 Pigtail STT 3-Wire 66844 - Stop Tail Turn Three-Wire 90º Plug-In Pigtails for Female Pin Lights, 18" Long, Ground Return, Slim-Line .180 Male
66844
 Pigtail STT 3-Wire Stop Tail Turn Three-Wire Plug-In Pigtails for Female Pin Lights, 6" Long, Chassis Ground, Slim-Line .180 Male
66812
 Pigtail STT 3-Wire Stop Tail Turn Three-Wire Plug-In Pigtails for Female Pin Lights, 11 1/2" Long, Chassis Ground, Blunt Cut Wires
67000
 Pigtail STT 3-Wire Stop Tail Turn Three-Wire Plug-In Pigtails for Female Pin Lights, 8" Long, Ground Return, Slim-Line .180 Male
66825
 Grommet Closed Back Grommet For 4" Round Lights, Black
91950
 Grommet Grommet For 4" Round Lights, Open Grommet
91740
 Bracket Mounting Module For 4" Round Lights, Yellow Zinc
43655
 Bracket Theft-Resistant Flange For 4" Round Lights, Black
92512
 Bracket Theft-Resistant Flange For 4" Round Lights, White
92510
 Bracket Theft-Resistant Flange For 4" Round Lights, Steel
43253
 Pigtail Two-Wire Plug-In Pigtails for Female Pin Lights, 10" Long, Chassis Ground, Blunt Cut, 90° Plug
67014
