SuperNova® 4" 10-Diode Pattern LED Stop Tail Turn Lights

Grote Loading Ajax Spinner

53532Hard-Wired, Grommet Mount

53532Hard-Wired, Grommet Mount

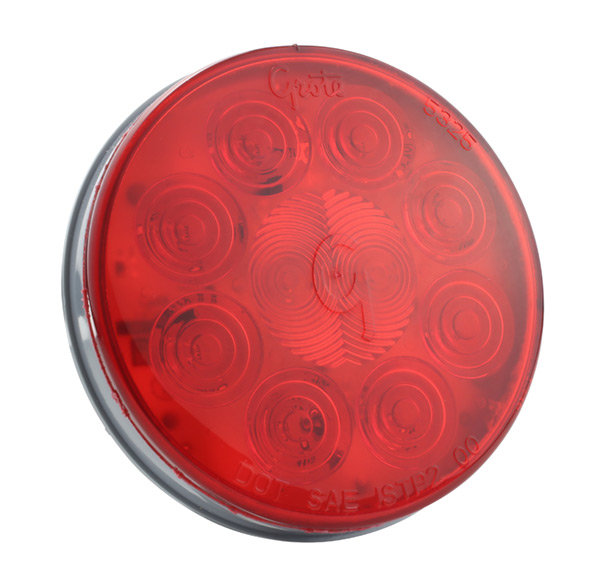

  • SuperNova® 4" 10-Diode Pattern LED Stop Tail Turn Light 360 thumbnail

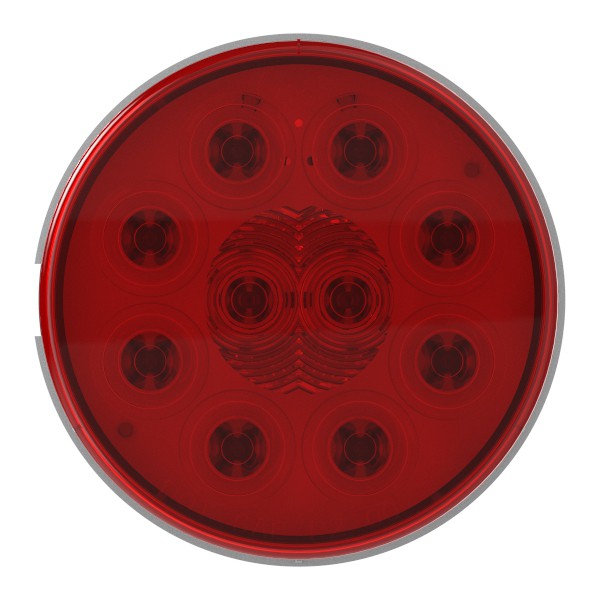

  • SuperNova® 4" 10-Diode Pattern LED Stop Tail Turn Light thumbnail

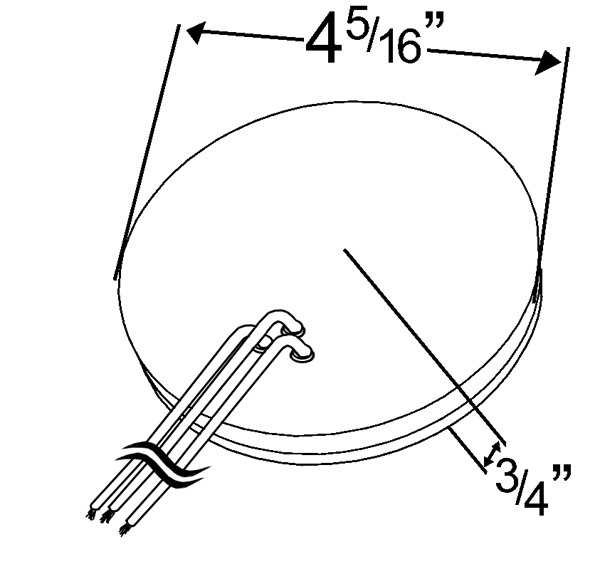

  • Grote product drawing - SuperNova® 4" 10-Diode Pattern LED Stop Tail Turn Light thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Color: Red
  • Product Line: SuperNova®
  • Voltage: 12V
  • Mounting Type: Bracket
  • Connection Type: Blunt Cut
  • Lens Color: Red
  • Shape: Round
  • Amperage: .03A-.2A
  • Size: 4"
  • Functions: T, S, P2, I
  • Regulations: FMVSS 108
  • VMRS: 034-002-059
  • Material: Polypropolene housing, Acrylic Lens
  • Product Type: Stop Tail Turn
  • Diameter: 4"
  • Housing Color: Gray
  • Warranty: 3 Years
Features & benefits
  • Hermetic lens-to-housing seal
  • Encapsulant potting for total circuit board protection
  • Uses same UBS pigtail as male pin incandescent
  • Lens design spreads light for maximum dispersion
  • Advanced Pin Connection System uses tin-plated, solid-brass pin terminals
