SuperNova® 9-Diode Oval LED Stop Tail Turn Lights

Grote Loading Ajax Spinner

54132Male Pin, Red

54132Male Pin, Red

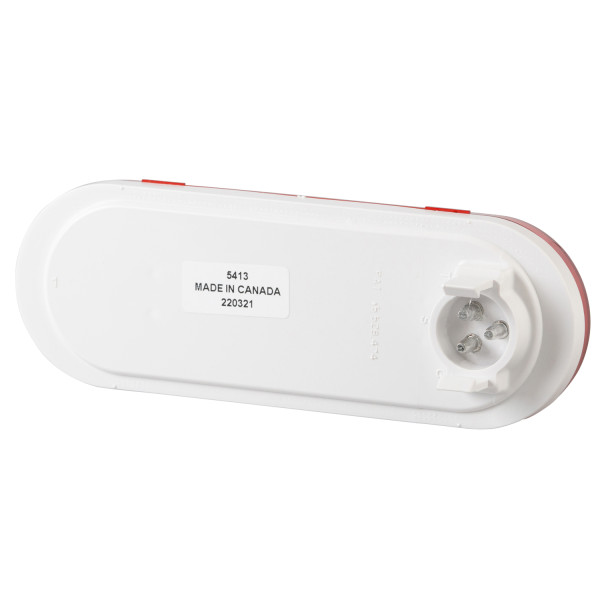

  • 54132 360 thumbnail

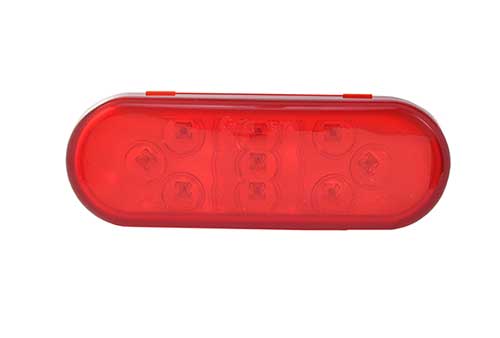

  • 54132 thumbnail

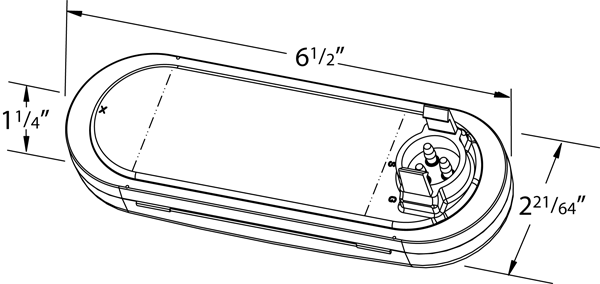

  • Grote product drawing - 9-Diode Oval LED Stop Tail Turn Light thumbnail
  • 54132 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Acrylic Lens, ABS Housing
  • Color: Red
  • Lens Color: Red
  • Housing Color: White
  • Voltage: 12V
  • Amperage: .01A-.2A
  • Mounting Type: Grommet, Bracket
  • Connection Type: Male Pin
  • Size: 6"
  • Regulations: FMVSS 108
  • Functions: I6, P, S, T, P2
  • VMRS: 034-002-059
  • Product Type: Stop Tail Turn
  • Product Line: SuperNova®
  • Shape: Oval
  • Warranty: 10 Years
Features & benefits
  • Available in Grote OEM male pin and hard shell connection options for easy retrofit or replacement
  • Fits current mounting flanges and grommets
  • Electronics completely encapsulated with durable epoxy for maximum protection from the environment
Find a Local Distributor

Replacements, Tools & Accessories

Accessory 42153
42153
 Bracket 43362
43362
 Bracket 43952
43952
 Bracket 43220
43220
 Bracket 43223
43223
 Bracket 43222
43222
 Bracket 43100
43100
 Bracket 43723
43723
 Bracket 42152
42152
 Bracket 42153
42153
 Bracket Stainless Steel Security Ring
42103
 Grommet 92420
92420
 Grommet 92720
92720
 Pigtail STT 3-Wire 66861
66861
 Pigtail STT 3-Wire 66862
66862
 Pigtail STT 3-Wire 66815
66815
 Pigtail STT 3-Wire 67002
67002
 Pigtail STT 3-Wire 66841
66841
 Pigtail STT 3-Wire 66816
66816
 Pigtail STT 3-Wire 67005
67005
 Pigtail STT 3-Wire 66845
66845
