SuperNova® NexGen™ Oval LED Stop Tail Turn Lights

Grote Loading Ajax Spinner

54163Male Pin, Amber

54163Male Pin, Amber

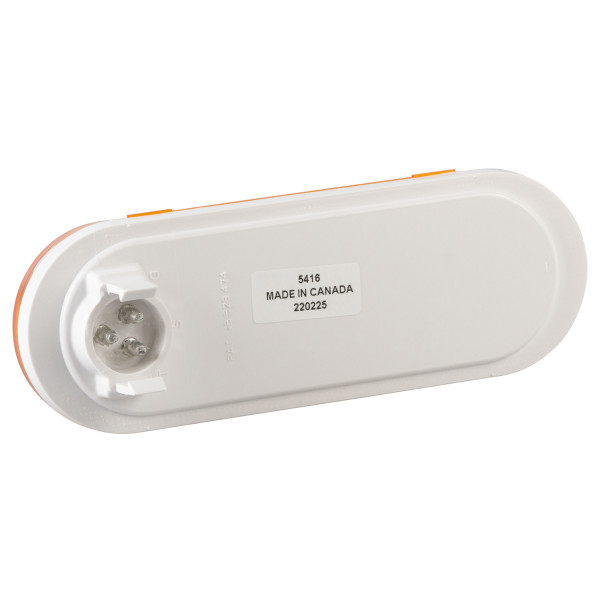

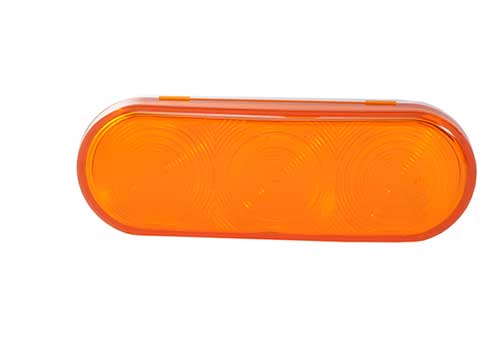

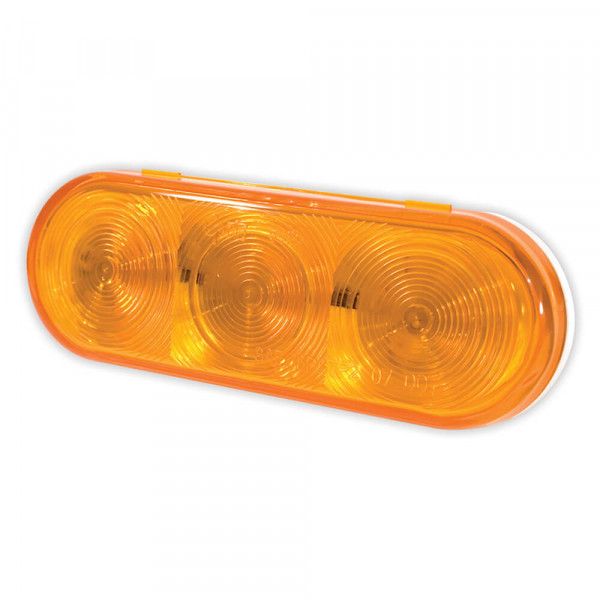

  • 54163 360 thumbnail
  • 54163 thumbnail

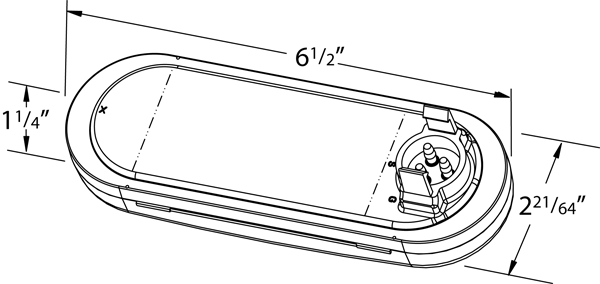

  • Grote product drawing - SuperNova® Oval LED Stop Tail Turn Light thumbnail
  • 54163 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Color: Amber
  • Product Line: SuperNova®, NexGen™
  • Voltage: 12V
  • Mounting Type: Grommet, Bracket
  • Connection Type: Male Pin
  • Lens Color: Amber
  • Shape: Oval
  • Amperage: .03A-.05A
  • Size: 6"
  • Functions: P2
  • Regulations: FMVSS 108
  • VMRS: 034-002-059
  • Material: Acrylic Lens, ABS Housing
  • Product Type: Stop Tail Turn
  • Housing Color: White
  • Warranty: 10 Years
Features & benefits
  • Fits current mounting flanges and grommets
  • Encapsulated with epoxy for protection from the environment
  • Grote OEM male pin and hardwire for easy retrofit or replacement
