SuperNova® 4" NexGen™ LED Stop Tail Turn Lights

Grote's SuperNova® 4" NexGen™ LED stop tail turn lights operate with less voltage draw than standard incandescent lights, providing a crisp, clear-cut beam pattern & longer life. This family of lights features a fully-protected circuit board to prevent damage from extreme weather and travel conditions. These are available in a variety of options, including with and without flange, integrated flange, and multi-volt.
Grote Loading Ajax Spinner

54572Integrated Flange w/ Gasket, Hard Shell

54572Integrated Flange w/ Gasket, Hard Shell

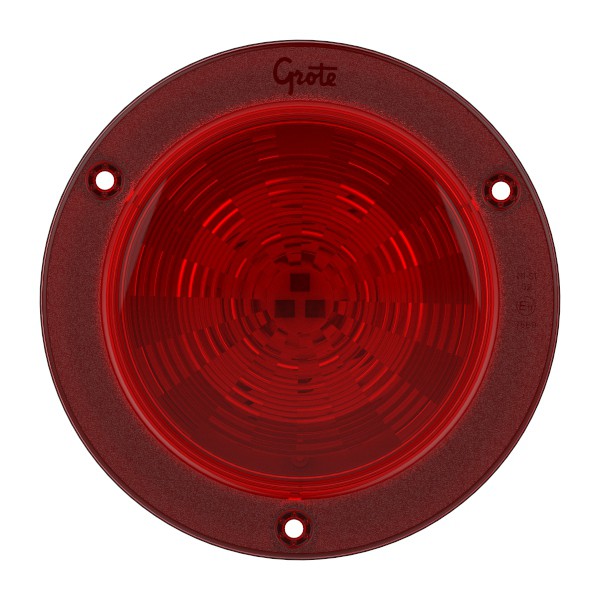

  • SuperNova® 4" NexGen™ LED Stop Tail Turn Lights, Integrated Flange w/ Gasket, Hard Shell 360 thumbnail
  • SuperNova® 4" NexGen™ LED Stop Tail Turn Lights, Integrated Flange w/ Gasket, Hard Shell thumbnail

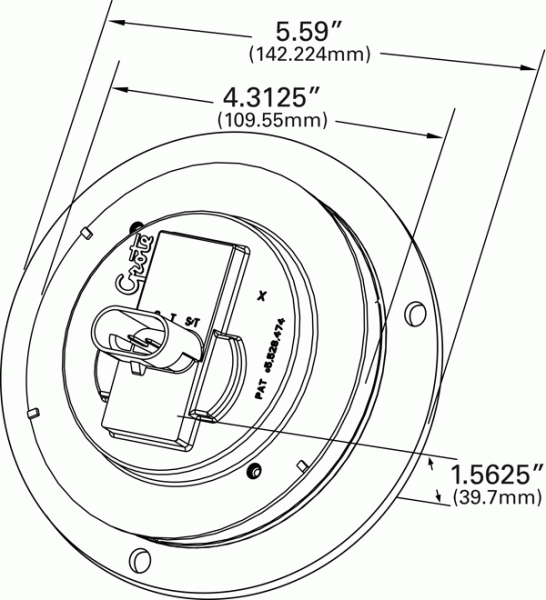

  • Grote product drawing - LED Stop Tail Turn Light With Integrated Flange thumbnail

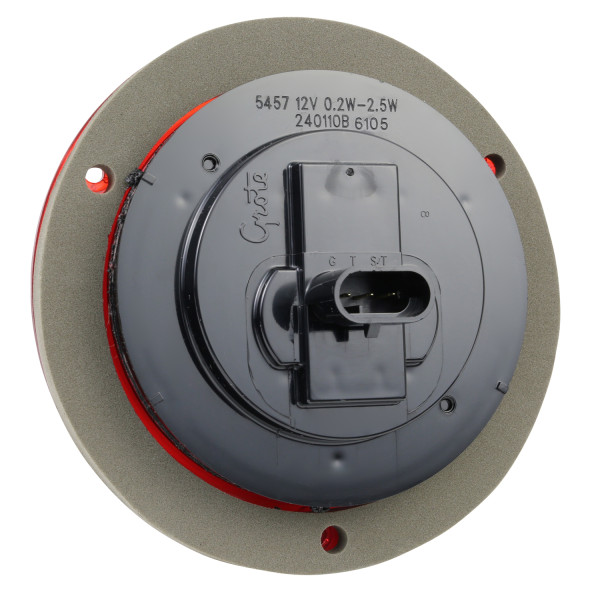

  • SuperNova® 4" NexGen™ LED Stop Tail Turn Lights, Integrated Flange w/ Gasket, Hard Shell, Back thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Acrylic, ABS
  • Color: Red
  • Amperage: 0.15A (S), 0.01A (T)
  • Size: 4"
  • Regulations: ECE R7
  • Functions: T, S, P2, I
  • VMRS: 034-002-013
  • Diameter: 4"
  • Product Type: Stop Tail Turn
  • Product Line: SuperNova®, NexGen™
  • Shape: Round
  • Warranty: 10 Years
Features & benefits
  • Less current draw than standard incandescent lights, leaving more power available to other vehicle systems
  • With a wider range of voltage, lights can be used virtually anywhere
  • Available in Male Pin, Hard Shell or Hardwire terminations
  • Fully encapsulated circuitry for total circuit board protection
  • Uses existing pigtails and wiring for cost effective retrofit
  • Fits all Grote bracket and mounting options
  • 20% less current draw than major competitor LED products
  • Lower overall weight compared to existing LED products; contributes to better fuel efficiency
  • Environmental encapsulant potting for total circuit board protection
  • Hermetic lens-to-housing seal prevents moisture intrusion
  • Resembles incandescent lights to alleviate theft concerns
  • Turn lamp can be utilized in the front or rear position on the vehicle
