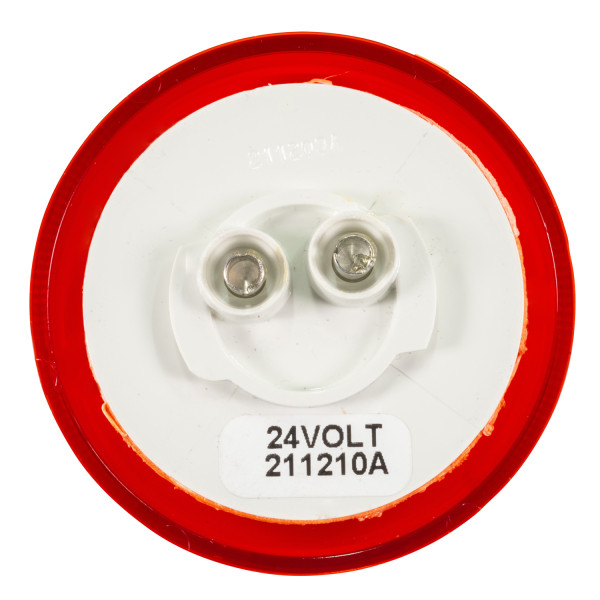

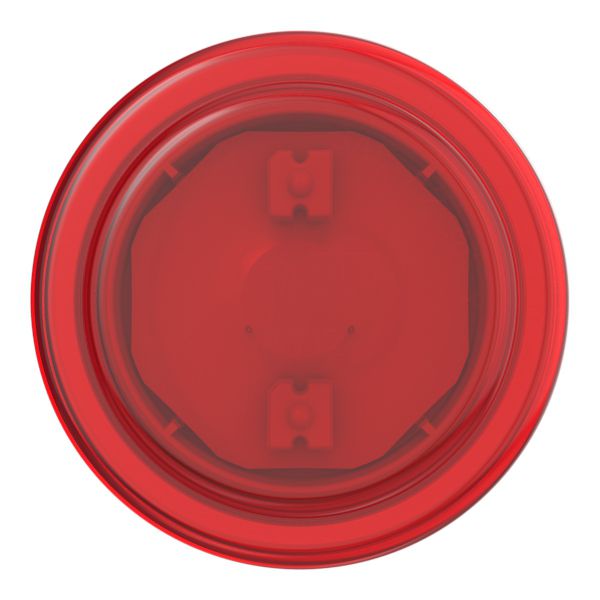

SuperNova® 2 1/2" LED Clearance Marker Lights

With encapsulant potting for total circuit board protection and hermetic lens-to-housing seal, Our SuperNova® 2 1/2" LED Clearance Marker Lights use the same UBS double-seal pigtails as incandescent versions for a quick retrofit. The tin-plated, solid-brass terminals are sealed to housing, to resist corrosion and eliminate failure causing leak paths.
Grote Loading Ajax Spinner

47322Red, 24V

47322Red, 24V

  • 47322 360 thumbnail
  • 47322 thumbnail

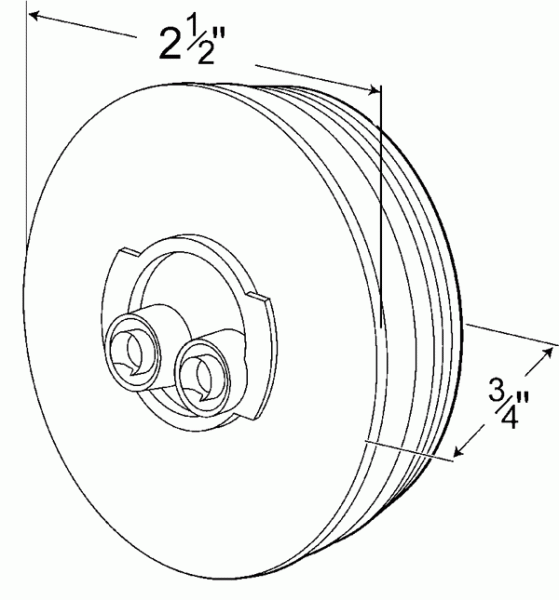

  • 47322 - drawing thumbnail
  • 47322 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polycarbonate Lens, Polycarbonate Housing
  • Color: Red
  • Lens Color: Red
  • Voltage: 24V
  • Amperage: .03A
  • Mounting Type: Grommet, Bracket
  • Connection Type: PL-10
  • Size: 2½"
  • Height: .75"
  • Regulations: FMVSS 108
  • Functions: P2
  • VMRS: 034-004-253
  • Diameter: 2.5"
  • Product Type: Clearance Marker
  • Product Line: SuperNova®
  • Shape: Round
  • Warranty: 10 Years
Features & benefits
  • Hermetic lens-to-housing seal
  • Encapsulant potting for total circuit-board protection
  • Uses the same UBS double-seal pigtail as the incandescent version for a quick retrofit
  • Tin-plated, solid-brass terminals are sealed to housing, to resist corrosion and eliminate failure-causing leak paths
Find a Local Distributor

Replacements, Tools & Accessories

Bracket 43690
43690
 Bracket 43160
43160
 Bracket 43162
43162
 Bracket 43163
43163
 Bracket 43512
43512
 Bracket 43522
43522
 Bracket Bar Lamp Bracket For 2" & 2 1/2" Round Lights, Black
49140
 Bracket 93750
93750
 Bracket 42180
42180
 Grommet 91400
91400
 Grommet 91410
91410
 Grommet 92070
92070
 Grommet 91890
91890
 Grommet 91880
91880
 Pigtail 66851
66851
 Pigtail 66850
66850
 Pigtail 67001
67001
 Pigtail 67050
67050
 Pigtail 66800
66800
 Pigtail 66840
66840
 Pigtail 66801
66801

Customer reviews

  • It doesn't look as though anyone has left a review for this product yet, be the first?
Leave a review keyboard_arrow_right

I consent to my data being processed and published by Grote Industries

I would like to be added to the Grote Industries email marketing list.

By ticking this checkbox, you are agreeing that we can process and securely store your data. Your review, rating, your first name and the initial of your last name will be published on the website. Any of your other personal information such as your email address will only be used for administrative purposes in accordance with our privacy policy.

This is a response from the server

Any HTML tags (such as links) will be automatically removed, this helps us to reduce spam. Reviews are moderated by an administrator before they will appear on the website.
rolling logo ajax spinner

Please rate the selected product out of 5.

Similar products you may be interested in
rectangular clearance marker light red

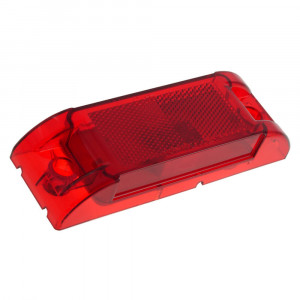

Chrome Plated Rectangular Clearance Marker Lights
