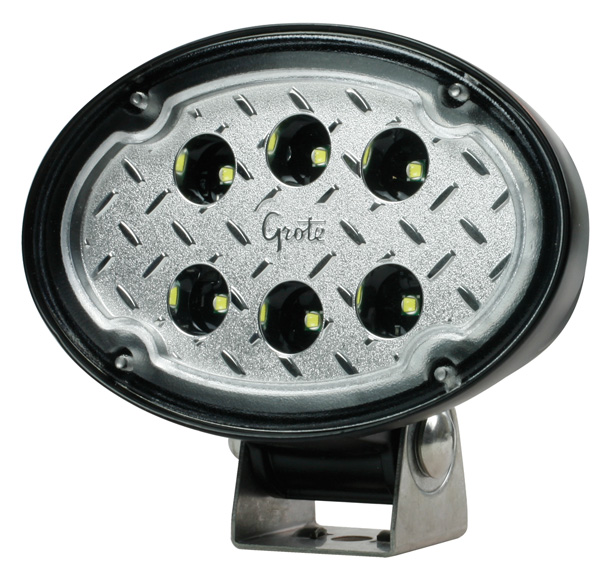

    Trilliant® Oval LED Work Lights

    When your customers need to work around the clock, they need work lights that are up to the task. Grote’s Trilliant® Oval 2000 and 3000 lumen LED work lights give you all the performance you need. They’re from Grote, the company that introduced LED lamps to the professional vehicle community. Like all Grote work lights, they’re rugged, reliable, and powerful. They’ll light up the night until the work is done.
    Grote Loading Ajax Spinner

    63F91Wide Flood, Hard Shell SuperSeal with...

    63F91Wide Flood, Hard Shell SuperSeal with...

    • 63f91 - Oval LED Work Light - 1200 Lumen 360 thumbnail
    • 63f91 - Oval LED Work Light - 1200 Lumen thumbnail
    • 63f81 - Drawing thumbnail

    Compare

    0 Product Added

    Compare

    Quickly compare up to 5 Grote products...

    pdf spinner


    Add more products to compare

    Technical specifications
    • Material: Polycarbonate Lens, Die-Cast Aluminium Housing
    • Finish: Black Powder Coated
    • Color: White
    • Lens Color: Clear
    • Voltage: 12/24V
    • Amperage: 1.0A-2.0A
    • Lumens: 1200
    • Light Pattern: Wide Flood
    • Color Temperature: 6500K
    • Mounting Type: Pendent
    • Connection Type: Superseal
    • Ingress Protection: IP69K
    • Height: 130 mm
    • Length: 68.8 mm
    • Regulations: ECE
    • Functions: R10
    • VMRS: 034-006-031
    • Bulk Pack #63F91-3: 0
    Features & benefits
    • Robust materials enhance endurance in tough environmental conditions
    • Multiple connector options, DT-2 Pin & Amp SuperSeal
    • Sophisticated reflector optics put more light on the task
    • Withstands heavy vibration, corrosion, moisture, and dust
    • LEDs produce white light reduceing eye fatigue & operator stress
    • Quality electronic components and advanced Grote circuit design provides electronically quiet operation, consistent light output, and protection from voltage spikes and electromagnetic interference

    Replacements, Tools & Accessories

    Pigtail Hard Shell SuperSeal Connector, 9" Long, Blunt Cut Wires
    68580

    Additional information

    This basic oval lamp design has been specifically styled for the agriculture market and has been recognized by OEMs for their performance, style, and light output on new equipment builds. Trilliant® Oval lamps provide the ability to improve standard lighting while keeping the same shape and style that came on the original equipment. When you need more light, but don’t want to change the style of your lamps or their mounting design, the Trilliant® Oval is the right choice.

    Application photos

    Grote Oval LED work light on tractor Grote lights on mining equipment Grote Oval LED work light on tractor

    Customer reviews

    • 63J31

      Excellent light. Great output, no hot spots. Provides a good diffuse light pattern. Well sealed with good construction.

      Paul H. May 10, 2016
