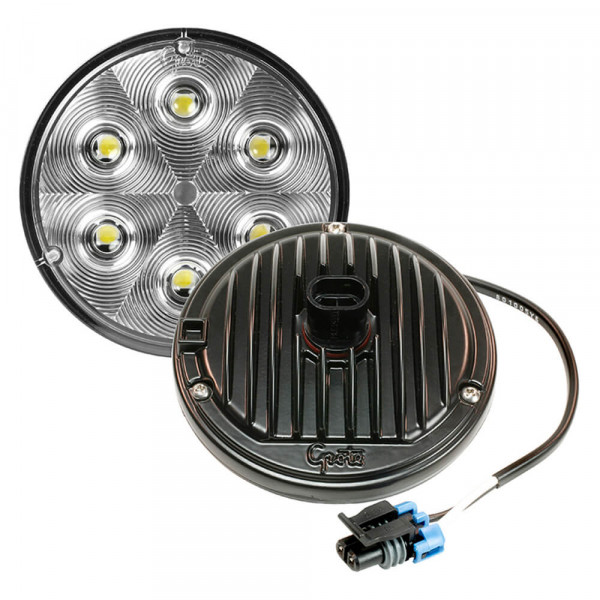

Trilliant® 36 LED Work Lights

    The Trilliant® 36 LED Work Light is a straightforward replacement for incandescent and halogen PAR 36 bulbs. This light is durable and practical, lasting for years. Trilliant® 36 features Tractorplus™ and wide flood beam patterns and easily connects with Deutsch, Amp Superseal, and Spade/Screw Terminals.
    Grote Loading Ajax Spinner

    63971Hard Shell SuperSeal With Pigtail, 12V/24V

    63971Hard Shell SuperSeal With Pigtail, 12V/24V

    • Trilliant 36 LED Work Light. 360 thumbnail
    • Trilliant 36 LED Work Light. thumbnail
    • 63971 - Drawing thumbnail


    0 Product Added


    Quickly compare up to 5 Grote products...

    pdf spinner

    Add more products to compare

    Technical specifications
    • Color: White
    • VMRS: 034-006-031
    • Ingress Protection: IPX9K
    • Voltage: 12/24V
    • Finish: Black Powder Coated
    • Mounting Type: Bracket
    • Connection Type: Hardshell
    • Lens Color: Clear
    • Light Pattern: TractorPlus
    • Lumens: 850
    • Amperage: .7A-1.3A
    • Functions: R10
    • Regulations: ECE
    • Material: Polycarbonate Lens, Die-Cast Housing
    • Color Temperature: 6500K
    • Housing Color: Black
    Features & benefits
    • Bulb termination accomodates either screw or FastOn cable connections
    • Bi-Voltage, TractorPlus™ Pattern
    • UV-coated and hard-coated lens for durability
    • Includes a pigtail for hard-wired applications
    • Thermal pull-back circuit to protect the LEDs from overheating

    Replacements, Tools & Accessories

    Additional information

    Grote T36 lamps provide the ability to quickly and inexpensively replace existing halogen bulbs with an LED replacement without changing any wiring. Just swap lamps and you are back in action. It’s just that easy.

    UV- and hard-coated lens for durability. Aluminum housing with black powder coating. Encapsulant potting for total circuit-board protection against moisture and corrosion. Color temperature provides a natural contrast most like sunlight, reducing eye fatigue and optimizing job performance. Replaceable lens with three stainless steel Phillips head screws. Long-Life LEDs rated at 40,000 hours, and last 100 times longer than incandescent PAR 36 lamps.

    Application photos

    Grote lights on mining equipment
