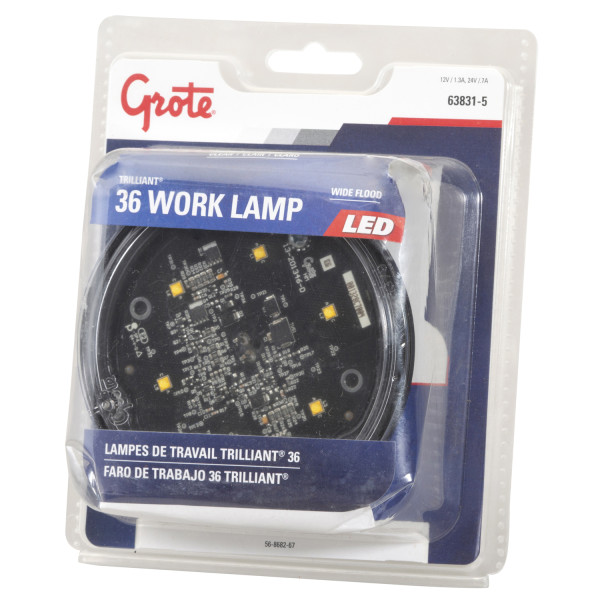

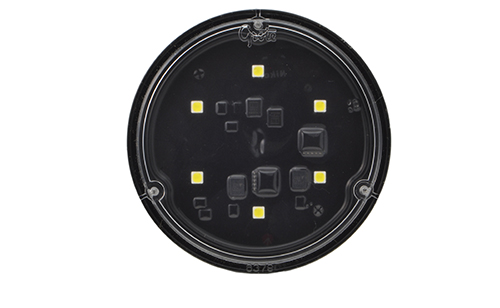

Trilliant® 36 LED Work Lights

The Trilliant® 36 LED Work Light is a straightforward replacement for incandescent and halogen PAR 36 bulbs. This light is durable and practical, lasting for years. Trilliant® 36 features Tractorplus™ and wide flood beam patterns and easily connects with Deutsch, Amp Superseal, and Spade/Screw Terminals.
Grote Loading Ajax Spinner

63831-5Spade/Screw Terminals, Wide Flood, 12V/24V

63831-5Spade/Screw Terminals, Wide Flood, 12V/24V

  • Trilliant® 36 LED Work White Light. 360 thumbnail
  • Trilliant® 36 LED Work White Light. thumbnail
  • 63831-5 - Drawing thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Color: White
  • VMRS: 034-006-031
  • Voltage: 12/24V
  • Finish: Black Powder Coated
  • Connection Type: Spade/Screw
  • Lens Color: Clear
  • Light Pattern: Wide Flood
  • Amperage: .7A-1.3A
  • Lumens: 850
  • Shape: Round
  • Functions: R10
  • Material: Polycarbonate Lens, Die-Cast Housing
  • Regulations: ECE
  • Color Temperature: 5700K
  • Product Type: Work Light
  • Housing Color: Black
Features & benefits
  • Bulb termination accommodates either screw or FastOn cable connections
  • UV-coated and hard-coated lens for durability
  • Thermal pull-back circuit to protect the LEDs from overheating

Replacements, Tools & Accessories

Additional information

Grote T36 lamps provide the ability to quickly and inexpensively replace existing halogen bulbs with an LED replacement without changing any wiring. Just swap lamps and you are back in action. It’s just that easy.

UV- and hard-coated lens for durability. Aluminum housing with black powder coating. Encapsulant potting for total circuit-board protection against moisture and corrosion. Color temperature provides a natural contrast most like sunlight, reducing eye fatigue and optimizing job performance. Replaceable lens with three stainless steel Phillips head screws. Long-Life LEDs rated at 40,000 hours, and last 100 times longer than incandescent PAR 36 lamps.

Application photos

Grote lights on mining equipment
