Trilliant® Oval LED Work Lights

When your customers need to work around the clock, they need work lights that are up to the task. Grote’s Trilliant® Oval 2000 and 3000 lumen LED work lights give you all the performance you need. They’re from Grote, the company that introduced LED lamps to the professional vehicle community. Like all Grote work lights, they’re rugged, reliable, and powerful. They’ll light up the night until the work is done.
Grote Loading Ajax Spinner

64W01Long Range, 2000 Lumens, Deutsch, 9-32V

64W01Long Range, 2000 Lumens, Deutsch, 9-32V

  • Long range LED worklight thumbnail

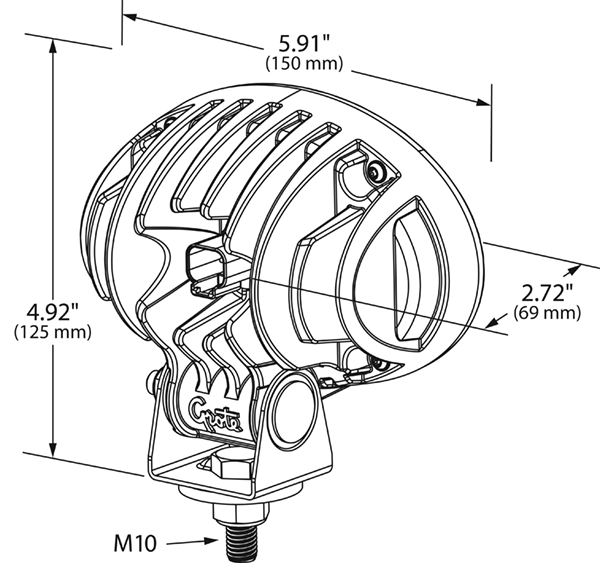

  • Grote product drawing - Long range LED worklight thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Operating Temperature: -40°C to +50°C / -40°F to 122°F
  • Product Line: Trilliant®
  • Voltage: 9-32V
  • Connection Type: Deutsch DT
  • Light Pattern: Long Range
  • Lumens: 2000
  • Shape: Oval
  • Regulations: R10
  • Material: Scratch and UV resistant hard coated polycarbonate Len, Aluminium powder-coated housing
  • Color Temperature: 5700 K
  • Warranty: 3 Years
Features & benefits
  • Pigtail not included
  • Innovative thermal management for long product lifetime
  • Premium level EMC requirements won't interfere with radio signals
  • Protected against automotive transients
  • Robust materials enhance endurance in tough environmental conditions
  • Multiple connector options, DT-2 Pin & Amp SuperSeal
  • Sophisticated reflector optics put more light on the task
  • Withstands heavy vibration, corrosion, moisture, and dust
  • LEDs produce white light reduceing eye fatigue & operator stress
  • Quality electronic components and advanced Grote circuit design provides electronically quiet operation, consistent light output, and protection from voltage spikes and electromagnetic interference

Replacements, Tools & Accessories

Additional information

This basic oval lamp design has been specifically styled for the agriculture market and has been recognized by OEMs for their performance, style, and light output on new equipment builds. Trilliant® Oval lamps provide the ability to improve standard lighting while keeping the same shape and style that came on the original equipment. When you need more light, but don’t want to change the style of your lamps or their mounting design, the Trilliant® Oval is the right choice.

Application photos

Grote Oval LED work light on tractor Grote lights on mining equipment Grote Oval LED work light on tractor

Customer reviews

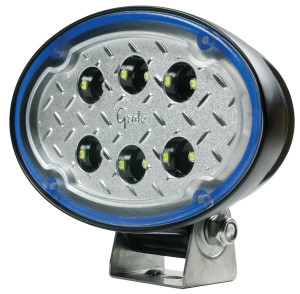

  • 63J31

    Excellent light. Great output, no hot spots. Provides a good diffuse light pattern. Well sealed with good construction.

    Paul H May 10, 2016
