Trilliant® LED Work Lights

Grote's Trilliant® line of LED lighting provides a long-lasting, high output work light solution. Available in a variety of beam patterns, our Trilliant® lights produce a natural contrast, similar to sunlight, reducing eye fatigue when working long hours. Trilliant® Work Lights range from 1300 to 2400 lumens and most are compatible with 12 and 24V systems.
Grote Loading Ajax Spinner

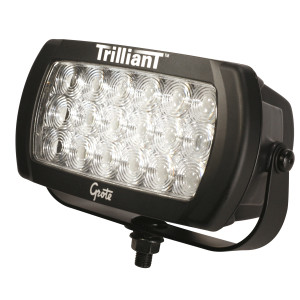

63571Spot, Hardwired, 12-24V

63571Spot, Hardwired, 12-24V

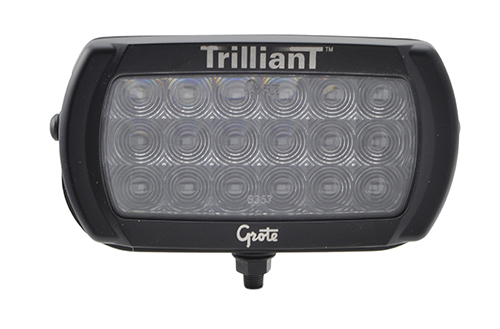

  • Trilliant® LED Work Light. 360 thumbnail
  • Trilliant® LED Work Light. thumbnail

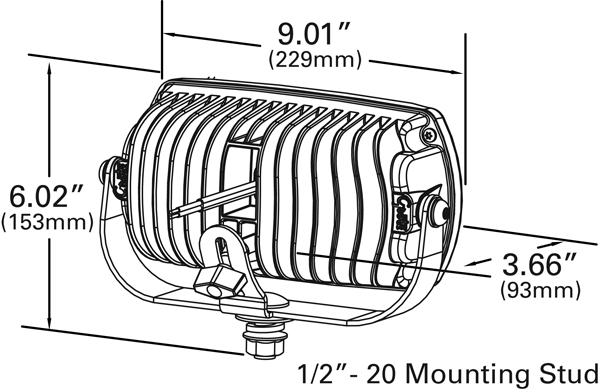

  • 635713 - Dawing thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polycarbonated Lens, Cast-Aluminium Housing
  • Finish: Black Powder Coated
  • Color: White
  • Lens Color: Clear
  • Voltage: 12/24V
  • Amperage: 2.1A-4.2A
  • Lumens: 1300
  • Light Pattern: Spot
  • Mounting Type: Stud
  • Connection Type: Blunt Cut
  • Ingress Protection: IP69K
  • Height: 153 mm
  • Length: 93 mm
  • Regulations: ECE
  • Functions: R10
  • VMRS: 034-001-015
Features & benefits
  • Easily mountable with a durable ½" stud mounting bracket, also features Aim-N-Go technology
  • Field tested in brutal off-road conditions
  • Long-lasting, high output LED work lamp
  • Color temperature provides a natural contrast most like sunlight, reducing eye fatigue and optimizing job performance
  • For mining, military, construction, off-road, agriculture, utility, and emergency vehicles, any application requiring a low-heat-emitting lamp that consistently delivers a bright light over time
  • Robust LED light engine, lasts longer than conventional light sources

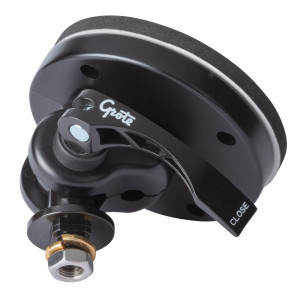

Replacements, Tools & Accessories

Additional information

These 6" x 9" rugged surface mount, high-output lamps use Grote’s proven premier LED WhiteLight™ technology.

The light output of the Trilliant® family rivals HIDs, eclipses halogen competitors, and provides beam pattern evenness and color temperature that produces a contrast most like that of natural sunlight. Grote Trilliant® lamps give you a rugged, military grade lamp for the agriculture environment. Available in many patterns and two optic designs, the Grote Trilliant line is an excellent option for putting light where you need it.

Application photos

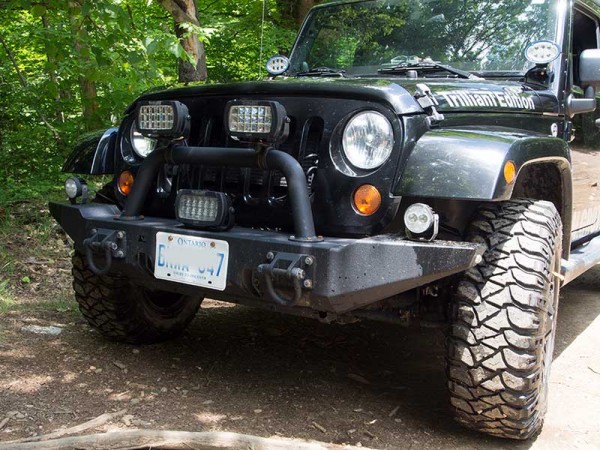

Grote LED Lights on an off-road jeep Grote lights on fire truck Grote Trilliant lights on firetruck Grote LED Trilliant White Light on Farm Equipment
