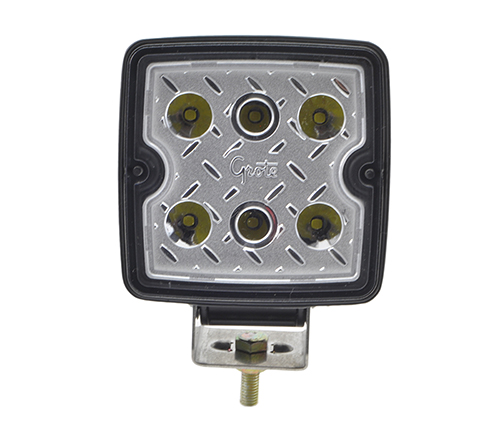

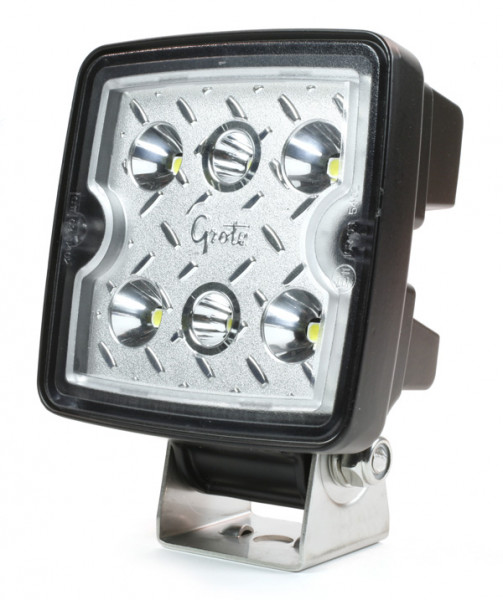

Trilliant® Cube LED Work Lights

Designed with a high lumen per watt rating, the Trilliant Cube provides high-quality light that fits where other lights just won’t work. Grote's sleek, rugged design with superior LED electronic circuitry outperforms lights twice its size and weight. Quality electronic components and advanced Grote circuit design provides electronically quiet operation, consistent light output, and protection from voltage spikes and electromagnetic interference. Premium LEDs produce white light that reduces eye fatigue and operator stress. Rugged design withstands heavy vibration, corrosion, moisture, and dust.
Grote spinner logo

63E21Flood, Deutsch, 12-24V

  • 63e21 - Grote Cube LED Work Light - 360 thumbnail
  • 63e21 - Grote Cube LED Work Light thumbnail

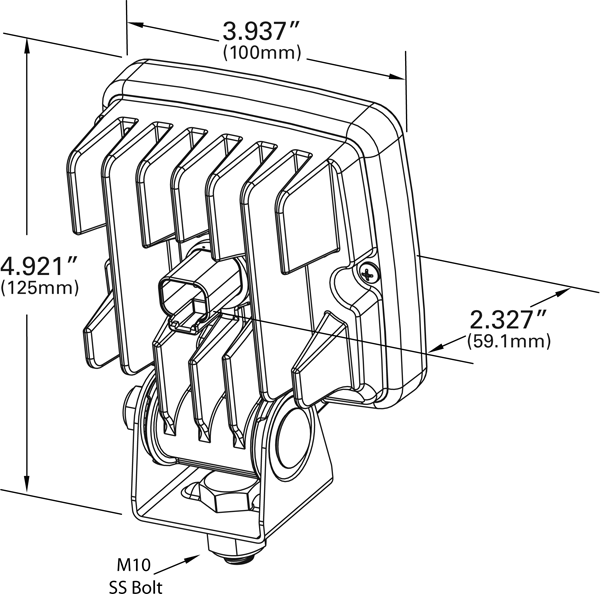

  • 63e21 - Drawing thumbnail
View all products in this family
  • Pigtail not included
Technical specifications
  • Material: Polycarbonate
  • Color: White
  • Lens Color: Clear
  • Voltage: 12/24V
  • Amperage: .7A-1.4A
  • Lumens: 1200
  • Light Pattern: Flood
  • Color Temperature: 6500K
  • Mounting Type: Pendant
  • Connection Type: Deutsch
  • Ingress Protection: IP69K
  • Height: 125 mm
  • Length: 59.1 mm
  • Regulations: ECE
  • Functions: R10
  • VMRS: 034-006-031
  • # of Pins (Flashers & Cords): Flood, Deutsch

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Add more products to compare

Technical specifications
  • Material: Polycarbonate
  • Color: White
  • Lens Color: Clear
  • Voltage: 12/24V
  • Amperage: .7A-1.4A
  • Lumens: 1200
  • Light Pattern: Flood
  • Color Temperature: 6500K
  • Mounting Type: Pendant
  • Connection Type: Deutsch
  • Ingress Protection: IP69K
  • Height: 125 mm
  • Length: 59.1 mm
  • Regulations: ECE
  • Functions: R10
  • VMRS: 034-006-031
  • # of Pins (Flashers & Cords): Flood, Deutsch
Features & benefits
  • Pigtail not included
  • All- weather design means consistent, reliable light for the task duration regardless of conditions
  • Die-Cast aluminum housing and stainless steel mounting bracket for the toughest environmental conditions
  • Highest quality electronic components and advanced Grote circuit design provides electronically quiet operation. This ensures long life, consistent light output, and protection from voltage spikes and electromagnetic interference
  • Hardened lens to prevent scratches or fading from exposure to the sun
  • Water-tight even when using high pressure cleaners

Replacements, Tools & Accessories

Viewing 0 / 23 products
Filter by
Product # Image Voltage Mounting Type Connection Type Light Pattern Lumens

Additional information

Grote Trilliant® Cubes are compact, bright, and fit where other lamps won’t. Designed with a high lumen per watt rating, the Cube provides high quality light that fits where other lamps just won’t work.

The Trilliant® Cube's sleek, rugged design with superior LED electronic circuitry outperforms lamps twice its size and weight. Quality electronic components and advanced Grote circuit design provides electronically quiet operation, consistent light output, and protection from voltage spikes and electromagnetic interference. Premium LEDs produce white light that reduces eye fatigue and operator stress. Rugged design withstands heavy vibration, corrosion, moisture, and dust.

Sophisticated reflector optics put more light on the task. Multiple connector options, DT-2 Pin and Amp SuperSeal, increase operational flexibility. Advanced circuit design and thermal management ensures consistent light output for the life of the lamp.
