LED Directional Warning Lights
LED directional warning lights provide a low profile and reliable warning light option.

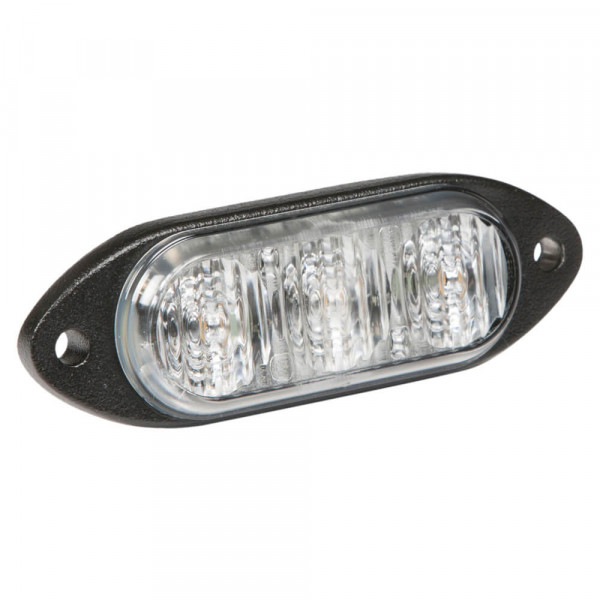

78161Surface Mount, 3-Diode, Class I, White
78161Surface Mount, 3-Diode, Class I, White
Compare
0 Product Added
Technical specifications
- Class: Class I
- Amperage: .3A
- Length: 3.08"
- Size: Low Profile
- Height: 0.39"
- VMRS: 034-001-021
- Product Type: Directional Warning Lamp
- Connection Type: Blunt Cut
- Wire Length: 7"
- Mounting Type: Surface
- Standards: SAE J595
- Lens Color: Clear
- Shape: Rectangular
- Gauge: 22 GA
- Operating Temperature: -40°C to +55°C
- Color: White
- Width: 1"
- Material: Polycarbonate/Aluminum
- Warranty: 5 Years
Features & benefits
- S-Link™ System* synchronizing capabilities with up to six other units Allows for synchronization with other S-Link compatible products
- Self-contained high intensity, wide angle LED module
- Robust design, die-cast aluminum base
- Versatile LED directional warning light can be synchronized with up to 8 interconnected modules and 25 different built-in flash patterns
Additional information
Related Downloads
Customer reviews
-
Hi Marc! You can find a link to the Installation Instructions under the Related information section of this page.
77463
-
I bought two of these to replace some someone stole. These were easy to install, have a lot of patterns to choose from and are very bright. They are solidly built and seem like they'll last a long time. I'm very happy with them.
78460
-
Someone know how to install or connect this lights Tks
77463
-
good product when you know how to use it.
77463
-
Awesome lights, super bright! Perfect size for behind the grille etc. 3 guys I know have asked me where to get them and have bought them also. I purchased mine at Parts for Trucks.
77463
