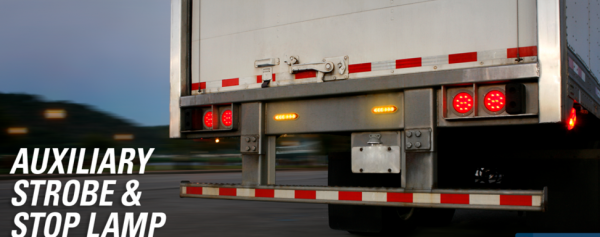

Auxiliary Strobe & Stop Lamps
Fight the dangers of distracted driving with Grote’s Auxiliary Strobe & Stop Lamp, a groundbreaking warning light that brings greater visibility to trailers during braking. The Auxiliary Strobe & Stop Lamp is easily wired into an existing brake light circuit and emits a sequence of five amber flashes in four seconds followed by a solid red burn when the vehicle’s brakes are engaged. Reducing rear-end collisions and increasing operator safety with this simple, effective warning light means less equipment and freight damage, less downtime, and fewer delayed shipments.
Compare
0 Product Added

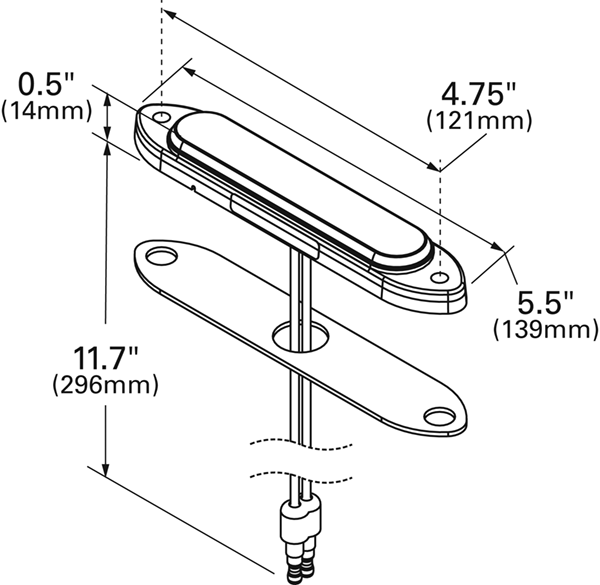

Technical specifications
- Color: Amber/Red
- Class: Class II
- Length: 5.5"
- Amperage: 0.2A-0.4A
- Finish: Black Powder Coated
- Height: .5"
- Connection Type: Hardwired to .180 male bullets
- Operating Temperature: -40°C to +55°C
- Mounting Type: Surface
- Lens Color: Clear
- Material: Polycarbonate Lens, Aluminium Housing
- Voltage: 12V
- Size: Low Profile
- Standards: SAE J595, SAE J1889, SAE J186a
- VMRS: 034-001-021
- Wire Length: 11.7"
- Width: 1"
- Wire Gauge: 14 GA
Features & benefits
- Lamp integrated to brake circuit
- Surface mount with several wiring options to fit all harness systems
- Five amber flashes in four seconds followed by a solid red burn prevents flicker vertigo for following traffic
- 0.2” mounting hole
- 12 Volt
- Maximum amp draw of 0.4 amps
- 5-year warranty
- Studies show that flashing brake lights can reduce rear-end accidents by more than a third
