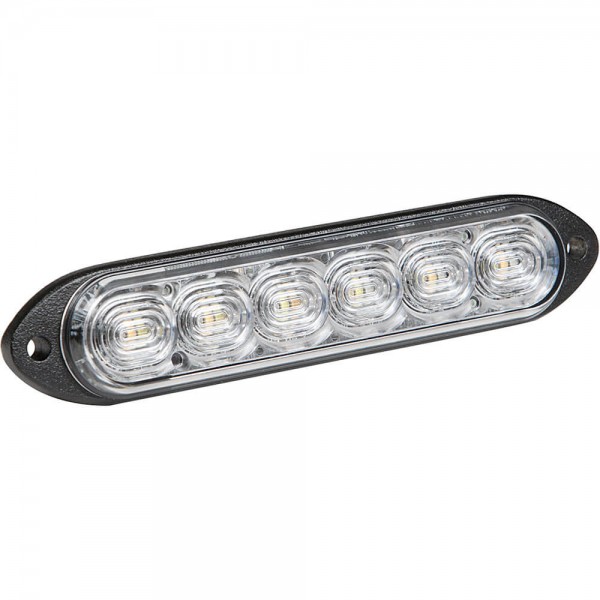

Tri-Color LED Directional Warning Lights
Grote’s line of Directional Warning Lights provide outstanding visibility in compact, ultra-low profile lamps. These rugged lights will fit anywhere and provide for unlimited mounting possibilities. Choose from products with selectable flash patterns including steady –on burn, and a variety of profiles that will suit your specific needs and applications.
Compare
0 Product Added
Technical specifications
- Material: Polycarbonate/Aluminum
- Color: Amber/Blue/White
- Lens Color: Clear
- Voltage: 12/24V
- Amperage: .8A
- Class: Class I
- Wire Gauge: 22 GA
- Mounting Type: Surface
- Connection Type: Blunt Cut
- Operating Temperature: -40°C to +55°C
- Size: Low Profile
- Height: .39"
- Length: 4.95"
- Wire Length: 7"
- Standards: SAE J595
- VMRS: 034-001-021
- Product Type: Directional Warning Lamp
- # of Wires: 6
- Width: 1"
Features & benefits
- Ultra-low-profile can be mounted to almost any flat surface
- 3 independent power wires give you the ability to control each color and pattern independently
- S-Link™ system synchronizing capabilities allows for synchronization with other S-Link™ compatible products
Replacements, Tools & Accessories
Additional information
Download the Grote Tri-Color Programming App
by visiting the iOS App Store or Google Play Store.
Fully programmable and customizable, Grote’s newest directional warning lights feature an innovative wiring design that allows each color to be powered and controlled independently. With 18 field-selectable flash patterns and 2 timing phases to choose from, these lights can deliver a multitude of flash patterns and frequency. These lights feature a programmable S-Link™ System which allows other S-Link™ devices to be synchronized to one another for maximum light pattern effect. A built-in ambient light sensor for an optional auto-dim feature monitors the brightness of the surroundings and adjusts the light’s output accordingly. Grote’s advanced “Tri-Color Programmer” smartphone app, available on iOS and Android, makes remote programming quick and easy.
