LED Traffic Directors

Grote Loading Ajax Spinner

78270Large with Dual Lamp Arrow

78270Large with Dual Lamp Arrow

  • 78270 thumbnail

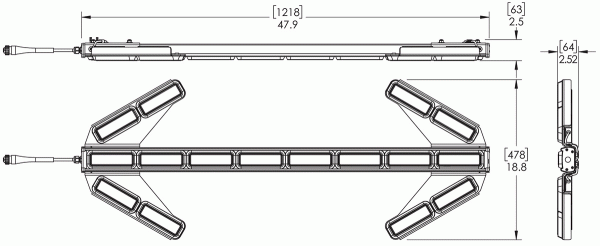

  • 78270 Line Drawing thumbnail
  • 98523 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polycarbonate Lens, Aluminum Housing
  • Mounting Type: Permanent
  • Shape: Arrow
  • Color: Amber
  • Lens Color: Clear
  • Width: 46.8"
  • Height: 18.2"
  • Depth: 2"
  • Wire Length: 35'
  • Voltage: 12 VDC Nominal
  • Amperage: 3.2A
  • Gauge: 18 & 22 GA
  • Operating Temperature: -22°F to +122°F (-30°C to +50°C)
  • Class: SAE J595 Aug 21 Class 1
  • VMRS: 034-001-021
  • Warranty: 5 Years
Features & benefits
  • Traffic Director 78270 with date code prior to May 1, 2023 is only compatible with Controller 98522 and module 98533
  • Micro-processor control unit offers 4 modes with distinctive flash options
  • Front load for easy replacement of individual module (Grote #98343)
  • Modes: left arrow, right arrow, cente out, and warn (alternating)
  • Ships complete with backlit control unit 98523, 35’ wire harness, mounting kit (L-brackets, hardware), and instructions
  • Made from durable extruded aluminum — Traffic Directors will not warp or bend
