Traffic Directors / Stick Accessories

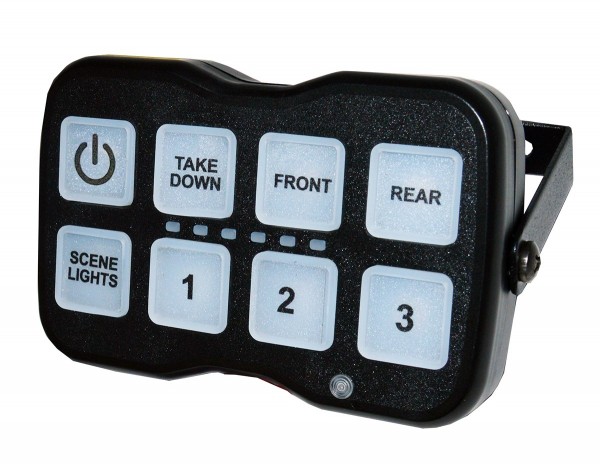

985248-Button Traffic Director Controller
Compare
0 Product Added
Technical specifications
- Material: Polycarbonate
- Mounting Type: Univeral U Bracket (Aluminum)
- Color: Black
- Connection Type: 30 cm (12") harness with 12 pin connector
- Width: 4.1" (105.3 mm) including bracket
- Height: 2.9" (74.4 mm) including bracket
- # of Wires: 12
- Voltage: 12 VDC Nominal
- Operating Temperature: -40°F to +131°F (-40°C to +55°C)
- VMRS: 034-001-021
Features & benefits
- 8-button controller operates up to 8 lights/devices
- Programmable switching options: Ground-side switching, Momentary switching, Normally Closed, Flashing Output with Phase settings, Audio feedback
- Option to program as a stand-alone Traffic Director Controller for logic-controlled sticks
- Includes 12-pin wire harness to simplify installation
- 14 brightness settings
- Includes replaceable velvet finish Lexan™ labels to customize your controller buttons
