Compact LED Beacons

Grote Loading Ajax Spinner

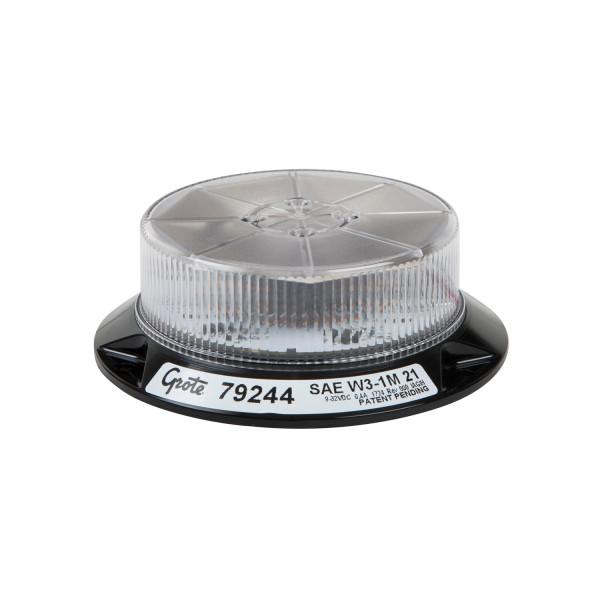

79244Permanent Mount, Class III, Green with Clear Lens

79244Permanent Mount, Class III, Green with Clear Lens

  • 79244-lit thumbnail
  • 79244 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Color: Green
  • Length: 4.40"
  • Operating Temperature: -40°C (-40°F) to +55°C (+131°F)
  • Voltage: 12/24V
  • Gauge: 22 GA
  • Height: 1.43"
  • Class: Class III
  • Mounting Type: Permanent
  • Connection Type: Blunt Cut
  • Lens Color: Clear
  • Amperage: 0.4A
  • Size: Compact
  • Standards: SAE J845
  • VMRS: 034-006-056
  • Material: Polycarbonate
  • Width: 4.43"
  • # of Wires: 4
  • Base: Polycarbonate
  • Current Rating: 12/24V
  • Mtg Hole: 3
  • Fits: 96305
  • Diodes: 16
  • Wire Length: 8"
Features & benefits
  • 12 customer selectable flash patterns in either of two phases, plus steady-on
  • S-Link™ 2.0 System allows for flash pattern synchronization with up to ten other S-Link compatible units (for hardwire models only)
  • Polycarbonate lens and base (Ultrasonic welded); Polarity protected
  • Three-hole, permanent mount and magnet mount with pattern select aux. plug
Find a Local Distributor

Application photos

Grote LED Beacon mounted on mirror Grote LED Beacon mounted
