Compact LED Beacons

Grote's Compact LED Beacons combine the key advantages of advanced LED technology with a durable polycarbonate housing. Engineered for reliability and long service life, they are ideal for applications where a durable, low-profile warning light is required.

Grote Loading Ajax Spinner

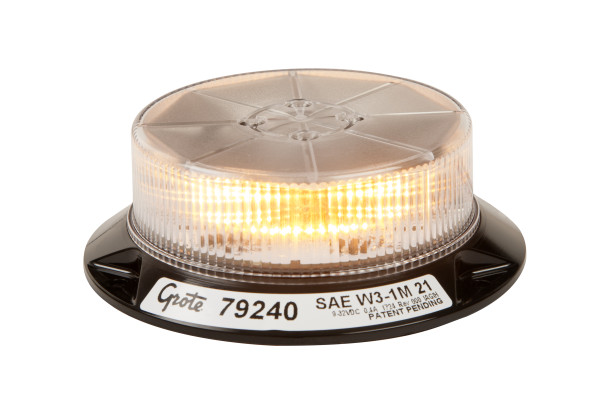

79240Permanent Mount, Class I, Amber with Clear Lens

79240Permanent Mount, Class I, Amber with Clear Lens

  • 79240 thumbnail
  • 79240 lit thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Color: Amber
  • Operating Temperature: -40°C (-40°F) to +55°C (+131°F)
  • Voltage: 12/24V
  • Gauge: 22 GA
  • Height: 1.43"
  • Class: Class I
  • Mounting Type: Permanent
  • Connection Type: Blunt Cut
  • Lens Color: Clear
  • Amperage: 0.4 A
  • Size: Compact
  • Standards: SAE J845
  • VMRS: 034-006-056
  • Material: Polycarbonate
  • Width: 4.43"
  • # of Wires: 4
  • Base: Polycarbonate
  • Current Rating: 12/24 V
  • Mtg Hole: 3
  • Diodes: 16
  • Fits: 96305
  • Wire Length: 8"
  • Warranty: 5 Years
Features & benefits
  • 12 customer selectable flash patterns in either of two phases, plus steady-on
  • S-Link™ 2.0 System allows for flash pattern synchronization with up to ten other S-Link compatible units (for hardwire models only)
  • Polycarbonate lens and base (Ultrasonic welded); Polarity protected
  • Three-hole, permanent mount and magnet mount with pattern select aux. plug
Find a Local Distributor

Application photos

Grote LED Beacon mounted on mirror Grote LED Beacon mounted

Customer reviews

  • It doesn't look as though anyone has left a review for this product yet, be the first?
Leave a review keyboard_arrow_right

I consent to my data being processed and published by Grote Industries

I would like to be added to the Grote Industries email marketing list.

By ticking this checkbox, you are agreeing that we can process and securely store your data. Your review, rating, your first name and the initial of your last name will be published on the website. Any of your other personal information such as your email address will only be used for administrative purposes in accordance with our privacy policy.

This is a response from the server

Any HTML tags (such as links) will be automatically removed, this helps us to reduce spam. Reviews are moderated by an administrator before they will appear on the website.
rolling logo ajax spinner

Please rate the selected product out of 5.

Similar products you may be interested in
Compact Four Sealed-Beam Roto-Beacon, Yellow

Compact Four Sealed-Beam Roto-Beacons
White LED Beacon

Medium Profile Class II & Class III LED Beacons
Red Material Handling Strobe

Material Handling Strobe Lights
Medium Profile Class II LED Clear Strobe

Medium Profile Class II LED Strobes
High Profile Class II LED Strobe, Yellow

High Profile Class II LED Strobe Lights
Mighty Mini Strobe, Single Flash, Clear

Mighty Mini Strobe Lights
Economy Material Handling Strobe, Yellow

Economy Material Handling Strobes
Amber LED Beacon

High Profile Class II LED Beacons

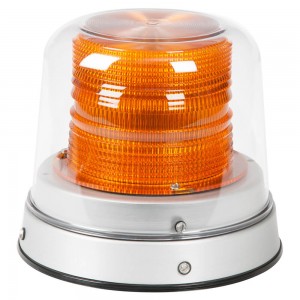

Amber LED Beacon with clear dome
