Tall Dome LED Beacons

Grote Loading Ajax Spinner

79073Amber, 12 to 24 VDC, High Lens

79073Amber, 12 to 24 VDC, High Lens

  • Amber LED Beacon with clear dome thumbnail

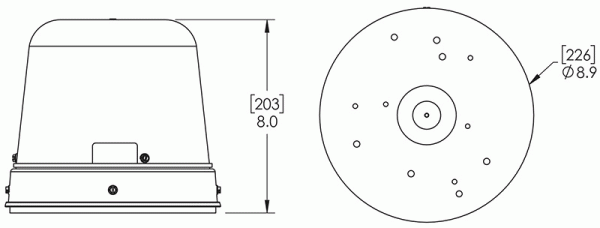

  • drawing of LED Beacon with dome thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polycarbonate/Aluminum
  • Color: Amber
  • Lens Color: Amber/Clear
  • Voltage: 12/24V
  • Amperage: .5A
  • Class: Class I
  • Wire Gauge: 18 GA
  • Mounting Type: Permanent/1" Pipe
  • Connection Type: Blunt Cut
  • Operating Temperature: -40°C to +55°C
  • Length: 8.9"
  • Standards: SAE J845
  • # of Wires: 4
  • Width: 8.9"
Features & benefits
  • S-Link™ System* synchronizing capabilities with up to eight other units. Allows for synchronization with other S-Link compatible products.
  • Heavy duty spun aluminum base with plastic base insert.
  • 12 different selectable flash patterns in either of two phases, plus steady-on.
  • High-Low power and rotating flash patterns available on select beacons.
  • Ability to isolate colors on dual color models giving you the ability to control what color you need for you current applications.
Find a Local Distributor

Replacements, Tools & Accessories

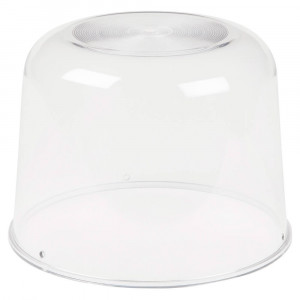

Lens Replacement Beacon Outer Dome
98271

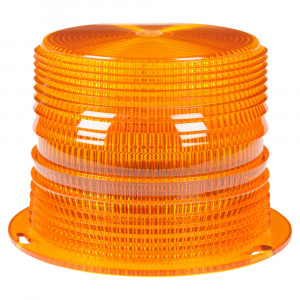

 Lens Amber Replacement Beacon Lens
98253

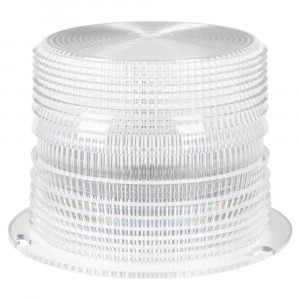

 Lens Clear Internal Beacon Lens
98251

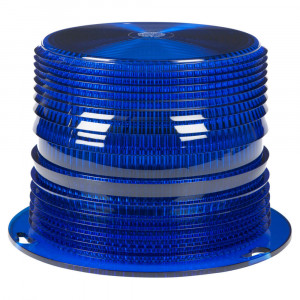

 Lens Blue LED Beacon Replacement Lens
98255
