Compact LED Beacons

Grote Loading Ajax Spinner

79093Amber LED Class I Compact Base - Perm Mount

79093Amber LED Class I Compact Base - Perm Mount

  • grote led beacon with base thumbnail

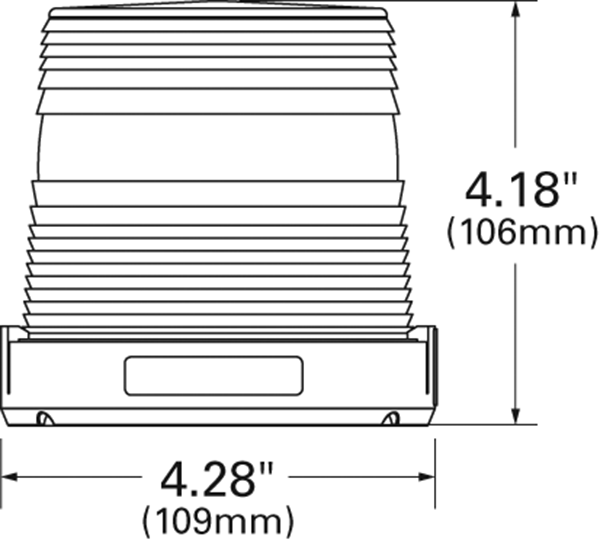

  • Amber 12-24V Compact Base Low Lens Line Drawing thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polycarbonate
  • Color: Amber
  • Lens Color: Amber
  • Voltage: 12/24V
  • Amperage: .5A
  • Class: Class I
  • Gauge: 18 GA
  • Mounting Type: Permanent/Pipe
  • Connection Type: Blunt Cut
  • Operating Temperature: -40°C to +55°C
  • Size: Compact
  • Height: 4.18"
  • Length: 4.28"
  • Standards: SAE J845
  • VMRS: 034-006-056
  • Width: 4.28"
Features & benefits
  • SAE Class I or II beacons in a compact design
  • Permanent mount base with optional ½" pipe mount or magnetic mount with aux power cord
  • Ideal for mirror mount applications or where low-profile lamps are beneficial
  • Replaceable polycarbonate lens - 98513

Application photos

Grote LED Beacon mounted on mirror Grote LED Beacon mounted
