High Profile Class II LED Beacons

With 26 customer-selectable flash patterns, these tall Grote LED beacons are durable, lightweight, and come with a 5-year warranty.
Grote Loading Ajax Spinner

78063Amber

78063Amber

  • Amber LED Beacon thumbnail

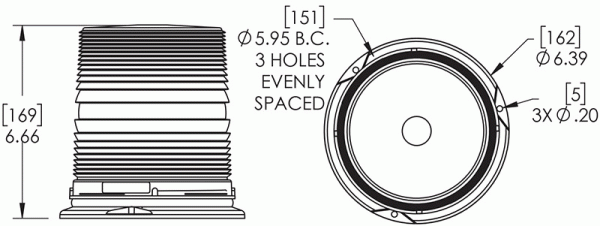

  • Grote product drawing - High Profile LED Beacon thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polycarbonate
  • Color: Amber
  • Lens Color: Amber
  • Voltage: 12/24V
  • Amperage: .35A
  • Class: Class II
  • Gauge: 22 GA
  • Mounting Type: Permanent
  • Connection Type: Blunt Cut
  • Operating Temperature: -40°C to +55°C
  • Height: 6.7"
  • Length: 6.4"
  • Standards: SAE J845
  • VMRS: 034-006-056
  • Product Type: Beacon
  • Style: High Profile
  • Shape: Tall Dome
  • Warranty: 5 Years
Features & benefits
  • 26 customer selectable flash patterns, plus steady-on
  • Circuit board is conformal coated to protect circuitry
  • Durable, lightweight polycarbonate base, flange 3-hole permanent mount, 1" pipe mount.
Find a Local Distributor

Replacements, Tools & Accessories

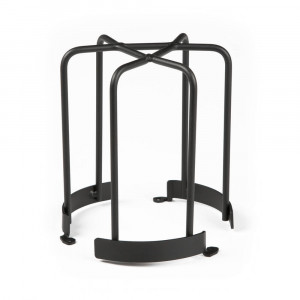

Branch Guard Tall Beacon Branch Guard
98460

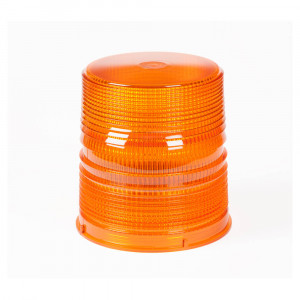

 Lens
98173

Customer reviews

  • It doesn't look as though anyone has left a review for this product yet, be the first?
Leave a review keyboard_arrow_right

I consent to my data being processed and published by Grote Industries

I would like to be added to the Grote Industries email marketing list.

By ticking this checkbox, you are agreeing that we can process and securely store your data. Your review, rating, your first name and the initial of your last name will be published on the website. Any of your other personal information such as your email address will only be used for administrative purposes in accordance with our privacy policy.

This is a response from the server

Any HTML tags (such as links) will be automatically removed, this helps us to reduce spam. Reviews are moderated by an administrator before they will appear on the website.
rolling logo ajax spinner

Please rate the selected product out of 5.

Similar products you may be interested in
Economy Material Handling Strobe, Yellow

Economy Material Handling Strobes
Amber LED Beacon with clear dome

Tall Dome LED Beacons
Mighty Mini Strobe, Single Flash, Clear

Mighty Mini Strobe Lights

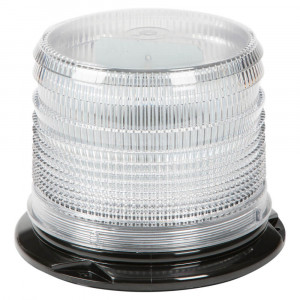

White LED Beacon

Medium Profile Class II & Class III LED Beacons
Amber LED Beacon with Clear Dome

Tall Dome LED Beacons - Dual Color

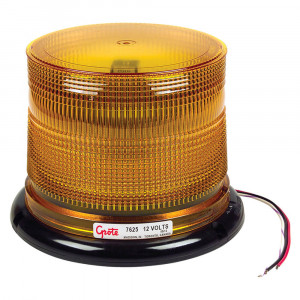

Permanent Mount Amber LED Beacon

LED Beacons with S-Link Synchronization
High Profile Class II LED Strobe, Yellow

High Profile Class II LED Strobe Lights
Medium Profile Class II LED Clear Strobe

Medium Profile Class II LED Strobes

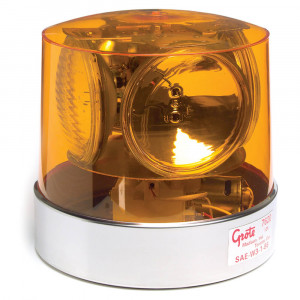

Compact Four Sealed-Beam Roto-Beacon, Yellow
