Tall Dome LED Beacons - Dual Color

Grote Loading Ajax Spinner

78013Class I, Amber, Clear Dome

78013Class I, Amber, Clear Dome

  • Amber LED Beacon with Clear Dome thumbnail

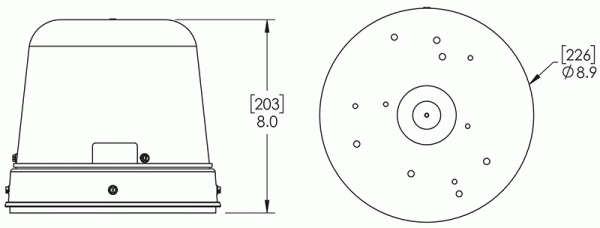

  • Grote product drawing - LED Beacon with Clear Dome thumbnail


0 Product Added


Quickly compare up to 5 Grote products...

pdf spinner

Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polycarbonate, Aluminum
  • Color: Amber
  • Lens Color: Amber
  • Voltage: 12/24V
  • Amperage: .6A
  • Class: Class I
  • Gauge: 18 GA
  • Mounting Type: Permanent
  • Connection Type: Blunt Cut
  • Operating Temperature: -30°C to +50°C
  • Height: 7.9"
  • Length: 8.9"
  • Standards: J845
  • VMRS: 034-006-056
  • Product Type: Beacon
  • Shape: Tall Dome
Features & benefits
  • S-Link™ System* synchronizing capabilities with up to six other units. Allows for synchronization with other S-Link compatible products
  • Heavy-duty spun aluminum base with plastic base insert
  • 12 different selectable flash patterns in either of two phases, plus steady-on
  • 2 rotating patterns
  • High-Low power available on single color beacons & Ability to isolate colors on dual color models
