Hi Count® Double-Face LED Stop Tail Turn Lights with Side Marker

Grote Loading Ajax Spinner

G5543w/ Packard Connector

G5543w/ Packard Connector

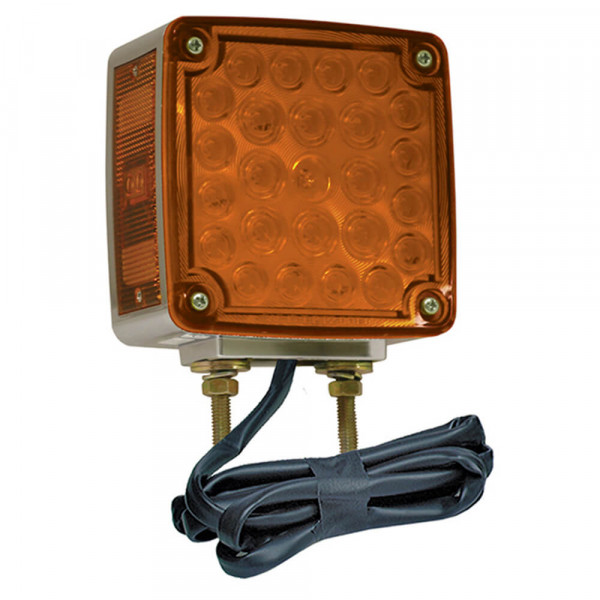

  • G5543 thumbnail

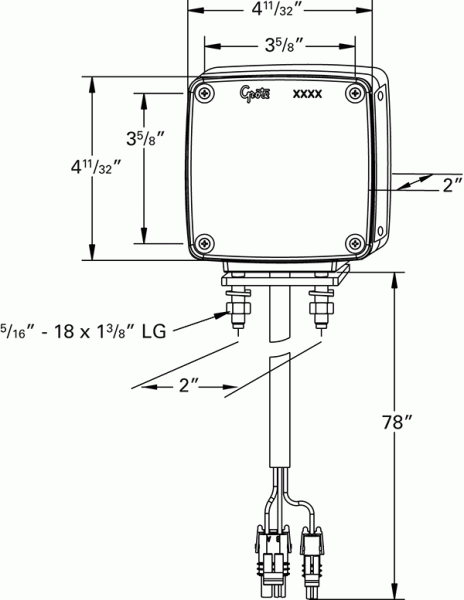

  • Grote product drawing - LED Stop Tail Turn Light with Sidemarker and Packard Connector thumbnail
  • G5543 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Acrylic Lens, ABS Housing
  • Finish: Chrome
  • Color: Amber
  • Lens Color: Amber
  • Housing Color: Chrome
  • Voltage: 12V
  • Amperage: .4A-.77A
  • Mounting Type: Pedestal
  • Connection Type: Packard
  • Regulations: FMVSS 108
  • Functions: A, I, T, P, P2
  • VMRS: 034-002-013
  • Product Type: Stop Tail Turn
  • Product Line: Hi Count®
  • Shape: Square
  • Warranty: 2 Years
  • Bulk Pack #G5543-3: 0
Features & benefits
  • Wiring instructions: (black) Marker – (red) Turn Signal – (white) Ground
  • 2-stud mounting bolts
  • 25 diodes on either front or back with two diodes in the side marker
  • Includes reflex reflector
  • Attached three-wire harness
  • Attractive multiple-diode design
