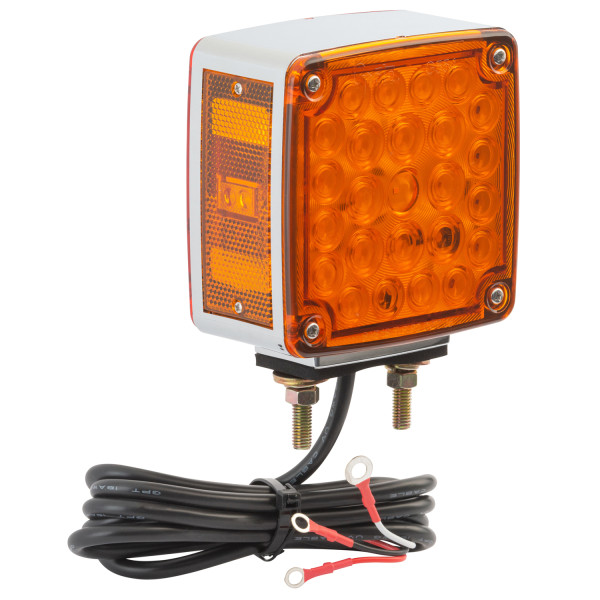

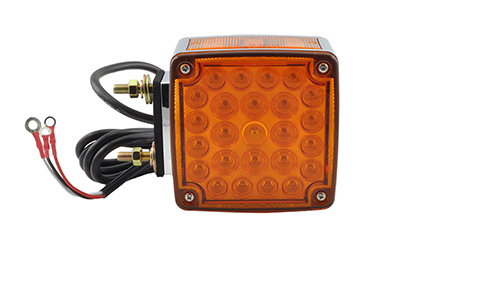

Hi Count® Double-Face LED Stop Tail Turn Lights with Side Marker

Grote Loading Ajax Spinner

G5540RH

G5540RH

  • G5540 360 thumbnail
  • G5540 thumbnail

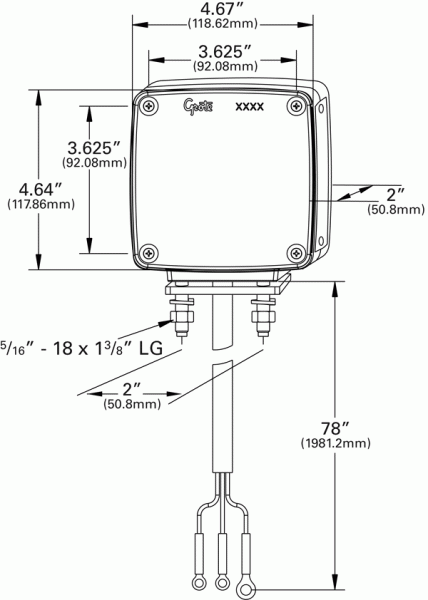

  • Grote product drawing - Double-Face LED Stop Tail Turn Light with Side Marker thumbnail
  • G5540 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Acrylic Lens, ABS Housing
  • Finish: Chrome Plated
  • Color: Red, Amber
  • Lens Color: Red/Yellow
  • Housing Color: Chrome
  • Voltage: 12V
  • Amperage: .19A-.78A
  • Mounting Type: Stud
  • Connection Type: Ring Terminal
  • Regulations: FMVSS 108
  • Functions: A, I, T, P, P2
  • VMRS: 034-002-059
  • Product Type: Stop Tail Turn
  • Product Line: Hi Count®
  • Shape: Square
  • Warranty: 2 Years
  • Bulk Pack #G5540-3: 24
Features & benefits
  • Wiring instructions: (black) Marker – (red) Turn Signal – (white) Ground
  • 2-stud mounting bolts
  • 25 diodes on either front or back with two diodes in the side marker
  • Includes reflex reflector
  • Attached three-wire harness
  • Attractive multiple-diode design
