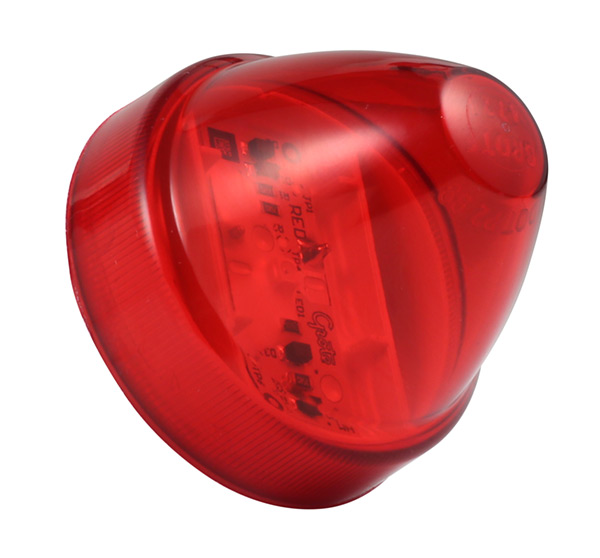

SuperNova® 2" Beehive LED Clearance Marker Lights

Grote's SuperNova® 2" Beehive LED Clearance Marker Lights have encapsulant potting for total circuit board protection with tin-plated, solid-brass terminals sealed to resist corrosion.
Grote Loading Ajax Spinner

47212Red

47212Red

  • 47212 thumbnail

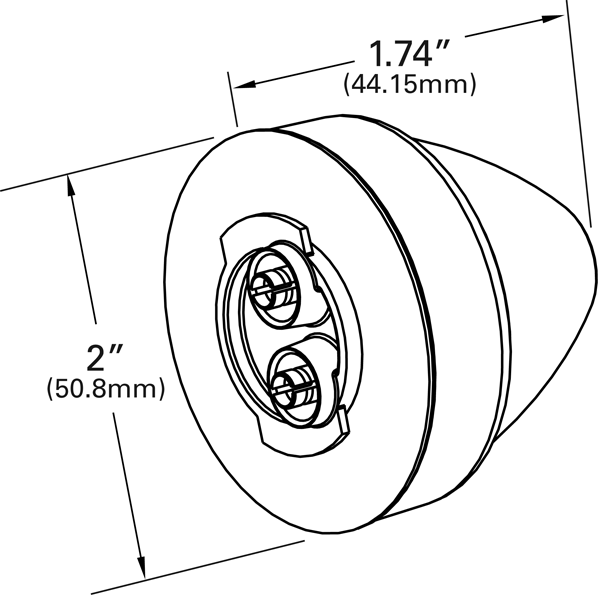

  • 47212 - drawing thumbnail
  • 47212 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polycarbonate Lens, Polycarbonate Housing
  • Color: Red
  • Lens Color: Red
  • Housing Color: White
  • Amperage: .06A
  • Mounting Type: Grommet, Bracket
  • Connection Type: PL-10
  • Size: 2"
  • Regulations: FMVSS 108
  • Functions: P2
  • VMRS: 034-004-253
  • Product Type: Clearance Marker
  • Product Line: SuperNova®
  • Shape: Beehive
  • Warranty: 10 Years
Features & benefits
  • Encapsulant potting for total circuit board protection
  • Tin-plated, solid-brass terminals are sealed to housing, to resist corrosion and eliminate failure-causing leak paths
  • Uses the same UBS double-seal pigtail as the incandescent version for a quick retrofit
  • Hermetic lens-to-housing seal
