WorkShield Warning Lights

Turn high-visibility clothing, reflectors, and equipment into active safety devices with Grote's WorkShield warning lights. Powered by HINVII technology, WorkShield lamps use minimally visible, low-wavelength light to brilliantly illuminate any high-visibility material, significantly raising its conspicuousness without blinding personnel and surrounding traffic. Create a safer, more visible work zone with WorkShield by Grote.
Grote Loading Ajax Spinner

79266Surface Mount, HINVII, 10-Diode, HINVII/Amber

79266Surface Mount, HINVII, 10-Diode, HINVII/Amber

  • 79266 front thumbnail

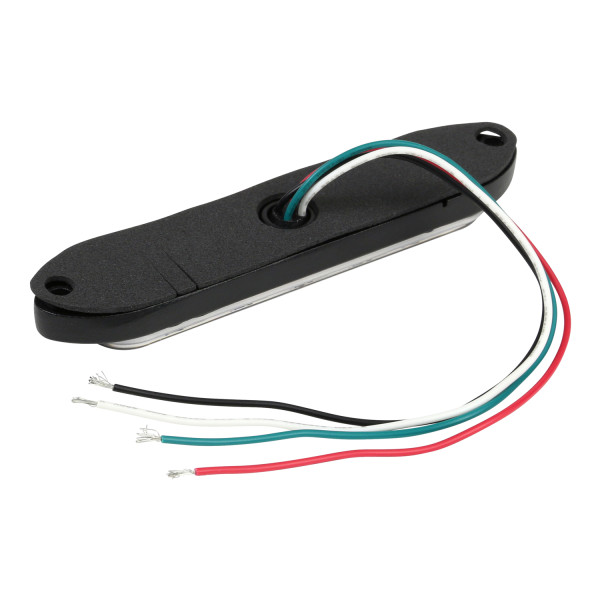

  • 79266 back thumbnail
  • 79266 detail thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Color: Non-Visible/Amber
  • Amperage: 0.4A
  • # of Wires: 4
  • Gauge: 22 GA
  • Finish: Black Polycarbonate
  • Base: Polycarbonate, Die-cast
  • Connection Type: Blunt Cut
  • Diodes: 10
  • Lens Color: Clear
  • Mounting Type: Surface
  • Operating Temperature: -40°C (-40°F) to +55°C (+131°F)
  • Material: Polycarbonate
  • Mtg Hole: 2
  • Product Line: HINVII
  • Voltage: 12/24V
  • Product Type: Directional Warning Lamp
  • VMRS: 034-001-021
  • Wire Length: 7.25"
  • Width: 1"
  • Warranty: 5 Years
  • Wire Gauge: 22 GA
Features & benefits
  • Get the most out of high-visibility clothing and gear, enhancing worksite visibility and safety
  • Perfect for applications where high-visibility clothing is used: Police, Fire, EMS, Utility, Refuse Collection, and more
  • Can be used with or without an external flasher
  • Durable design features ultrasonic welds, fusing lens, and plastic base for a tough, weather-tight seal
  • An ultra-thin profile bezel mount easily mounts to nearly any solid, flat surface
  • 79266 features the S-Link™ 2.0 System for synchronizing with other Grote S-Link units
