Two-Stud Chrome Light with Pigtail

Grote Loading Ajax Spinner

55340Red/Amber

55340Red/Amber

  • 55340 360 thumbnail
  • 55340 thumbnail

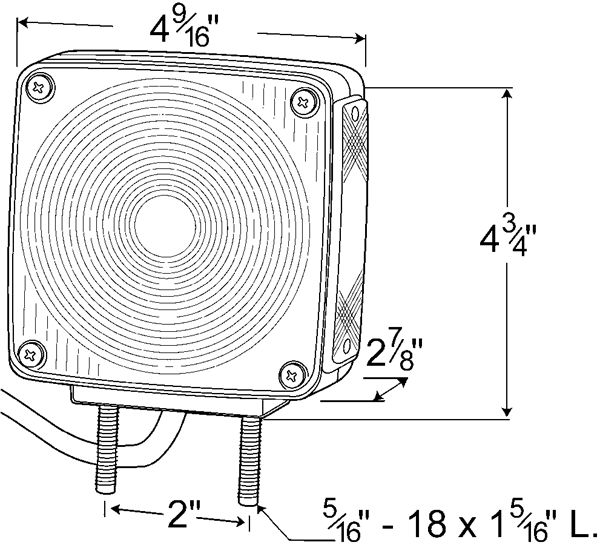

  • Grote product drawing - two stud chrome light thumbnail
  • 55340 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

LED Icon

G5530
Hi Count® Double-Face LED Stop Tail Turn Light with Side Marker

Technical specifications
  • Material: Acrylic Lens, ABS Housing
  • Finish: Chrome Plated
  • Color: Red, Amber
  • Lens Color: Red/Yellow
  • Housing Color: Chrome
  • Voltage: 12V
  • Amperage: .33A-2.1A
  • Mounting Type: Stud
  • Connection Type: Ring Terminals
  • Regulations: FMVSS 108
  • Functions: A, I, P2
  • Bulb: 1156, 32 CP, 193, 2 CP
  • VMRS: 034-003-057
  • Product Type: Stop Tail Turn with Side Marker
  • Shape: Square
  • Warranty: 1 Year
Features & benefits
  • 73" color coded pigtail
  • Includes reflex reflector
  • PVC wire jacket material
  • Vertical mount, ground wire plus tab
  • Switch lens for right or left applications
Find a Local Distributor

Replacements, Tools & Accessories

Lens 90483
90483
 Lens Amber Stop Tail Turn Replacement Lens
94643
