Submersible LED Trailer Lighting Kit

The Grote LED Submersible Trailer Lighting Kit combines rugged LED performance with totally submersible capabilities. This multi-function kit provides Stop Tail Turn, Side and Rear Reflectors, and License lamps. All lighting equipment needed for trailers less than 80 inches, such as 4’ trunk and 25’ trailer harness, license bracket, and mounting hardware, is included.
Grote Loading Ajax Spinner

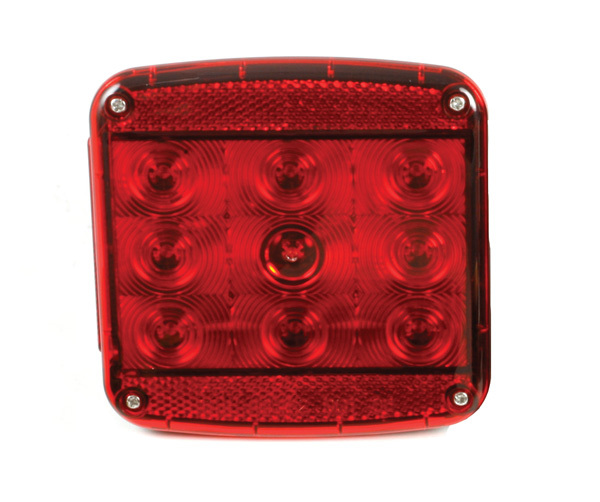

51962-5RH Stop Tail Turn Replacement

51962-5RH Stop Tail Turn Replacement

  • 51962-5 thumbnail

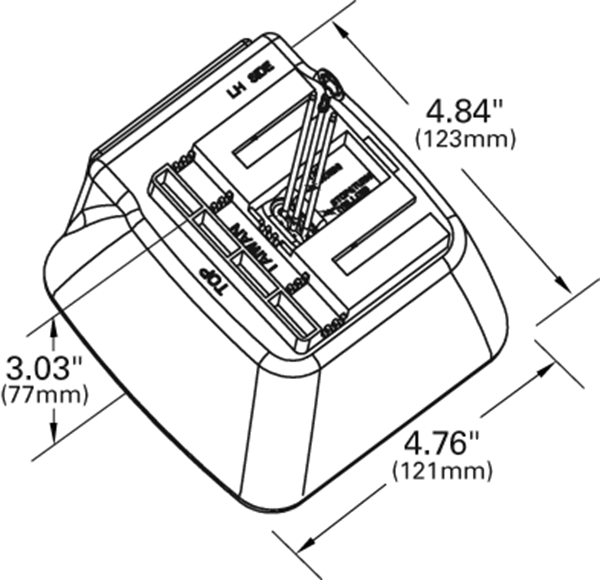

  • 51962-5 - drawing thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Color: Red
  • Voltage: 12V
  • Mounting Type: Stud
  • Connection Type: Ring Terminal, Blunt Cut
  • Lens Color: Red
  • Shape: Square
  • Amperage: .05A - .26A
  • Application: Trailers Under 80" Wide
  • Functions: S2, P2, I, A
  • Regulations: FMVSS 108
  • Material: Acrylic Lens, ABS Housing
  • Product Type: Stop Tail Turn
  • Housing Color: Black
  • # of Wires: 3
  • Style: Submersible
  • Position: Replacement RH
Features & benefits
  • Popular square design fits standard mounting hole configurations.
  • Multifunction lighting kit provides - Stop Tail Turn, Side and Rear Reflectors, and License lamps
  • Ideal for utility, snowmobile, camping, motorcycle, horse, and boat trailers - Submersible Kit
  • Individual replacement lamps are available for S/T/T and Clearance Marker functions
Find a Local Distributor

Replacements, Tools & Accessories

Bracket 43262-5
43262-5

Customer reviews

  • 51962

    I currently use the left handed stop/turn and it works great. I'm very pleased with the light

    Bruce M Dec 14, 2020
