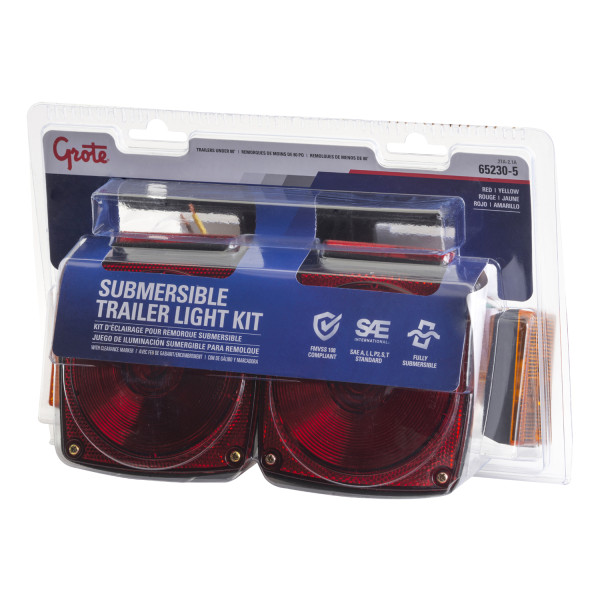

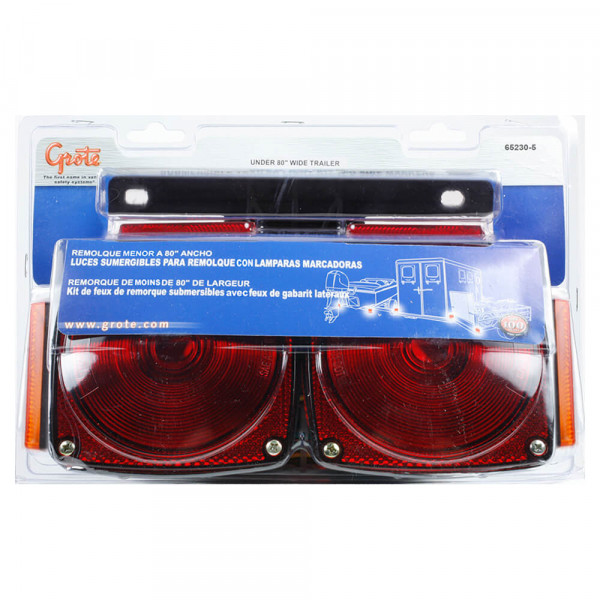

Submersible Trailer Lighting Kit

Grote Loading Ajax Spinner

65230-5w/ Clearance Marker

65230-5w/ Clearance Marker

  • submersible trailer lighting kit clearance marker red amber kit thumbnail
  • submersible trailer lighting kit kit thumbnail
  • 65230-5 drawing thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Acrylic Lens, Polycarbonate Lens, ABS Housing
  • Color: Red, Amber
  • Lens Color: Red/Yellow
  • Amperage: 027A-2.1A
  • Mounting Type: Bracket
  • Connection Type: Blunt Cut
  • Application: Trailers Under 80" Wide
  • Regulations: FMVSS 108
  • Functions: P2, I, L, A
  • Bulb: 32, 3 CP, 2 CP, T - 1157, Marker - 1895
  • VMRS: 034-002-013
  • Feature: with Clearance Marker
  • Style: Submersible
Features & benefits
  • Popular square design

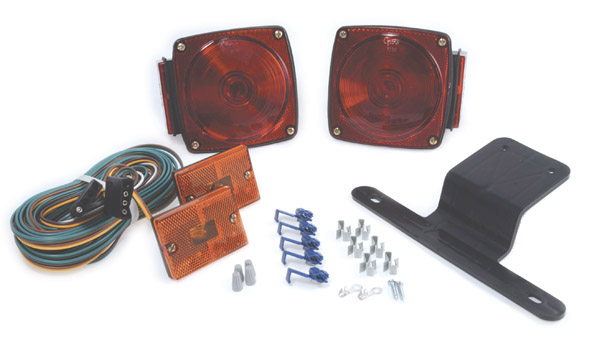

  • Kit includes harness, lamps, license bracket and mounting hardware
  • Six function tail lamps: Stop/Tail/Turn, Clearance Marker, License and Reflector
Find a Local Distributor

Replacements, Tools & Accessories

Lamp submersible trailer lighting kit rh stop tail turn red replacement
53662
 Lamp submersible trailer lighting kit lh stop tail turn red
53672
 Lens Front 440 Series Red Stop Tail Turn Replacement Lens
92792
 Lens rv marine utility replacement lenses red
91112
 Lens rv marine utility replacement lenses amber
91113
