SuperNova® LED Oval Trailer Stop Tail Turn Submersible Lighting Kits

Grote Loading Ajax Spinner

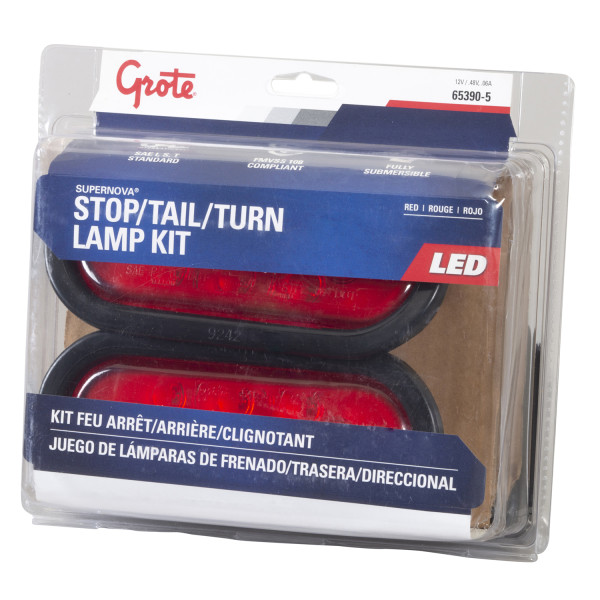

  • 65390-5 thumbnail

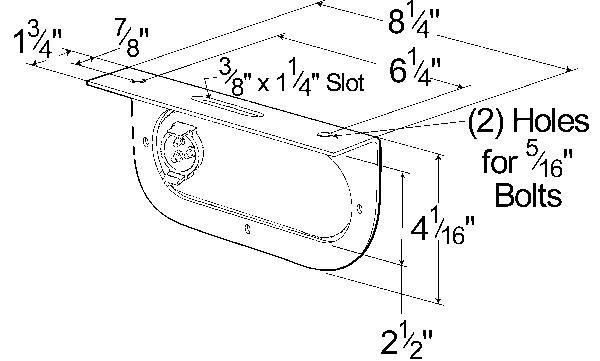

  • 65390-5 - drawing thumbnail
  • 65390-5 thumbnail


0 Product Added


Quickly compare up to 5 Grote products...

pdf spinner

Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • VMRS: 034-002-013
  • Material: Steel Bracket, PVC Grommet, Acrylic Lens, ABS Housing
  • Color: Red
  • Lens Color: Red
  • Housing Color: White
  • Voltage: 12V
  • Amperage: .06A - .48A
  • Mounting Type: Bracket
  • Connection Type: Ring Terminal, Blunt Cut
  • Application: Trailers Under 80" Wide
  • Regulations: FMVSS 108
  • Functions: T, S, I
  • Product Type: Stop Tail Turn, Kit
  • Style: Submersible
  • Shape: Oval
Features & benefits
  • Kit includes two each of: LED Stop Tail Turn Lights (54132), brackets (43362), grommets (92420) and 3-wire, 11" plug-in pigtails (67002)
  • Electronics completely encapsulated with durable epoxy for maximum protection from the environment
  • Fits current mounting flanges and grommets

Customer reviews

  • 65390-5

    Great lights but the brackets rusted after 4 years and I lost my license plate. Brackets should be made more durable

    Randy H Sep 01, 2019

  • 65390-5

    Thanks for the great review and kindly pointing out our silly typo, Kyle! Our content team is especially appreciative! (:

    Grote Jun 27, 2019

  • 65390-5

    Electronics completely encapsulated with durable epoxy for maximum protection form the environment. Need to change the Form to from. Great kit works well on my trailer. I have had them submerged for over 30 minutes. Lights did not fill up with water and and worked once I plugged my boat trailer back in to my truck. Overall great Kit.

    Kyle J Jun 24, 2019
