    SuperNova® Sealed Turtleback® II LED Clearance Marker Lights

    Grote's SuperNova® Sealed Turtleback® II LED Clearance Marker Lights have encapsulant potting for total circuit-board protection and meets PC function only when mounted at a 45° angle.
    Grote Loading Ajax Spinner

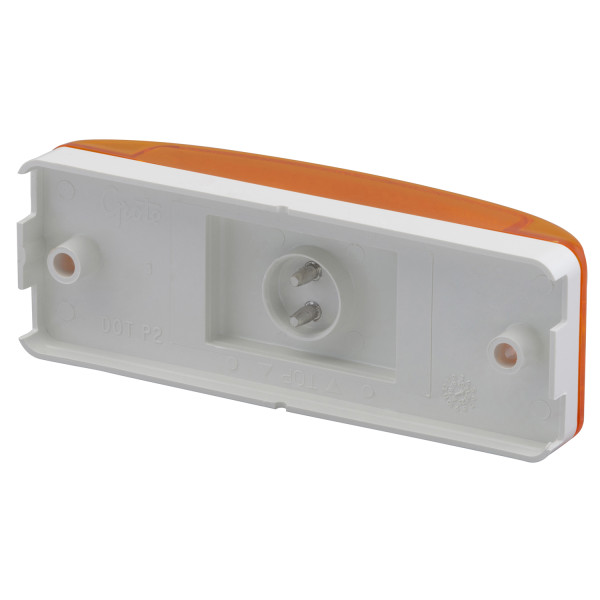

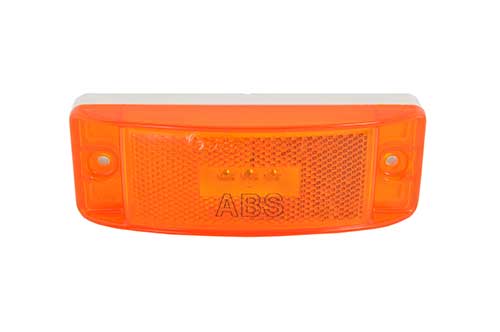

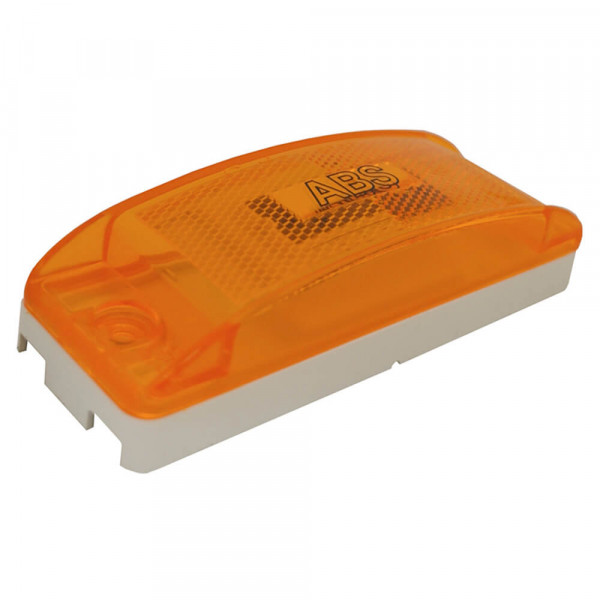

    78403ABS, Reflex Lens, Male Pin

    78403ABS, Reflex Lens, Male Pin

    • supernova sealed turtleback ii led clearance marker light abs reflex male 360 thumbnail
    • supernova sealed turtleback ii led clearance marker light abs reflex male thumbnail

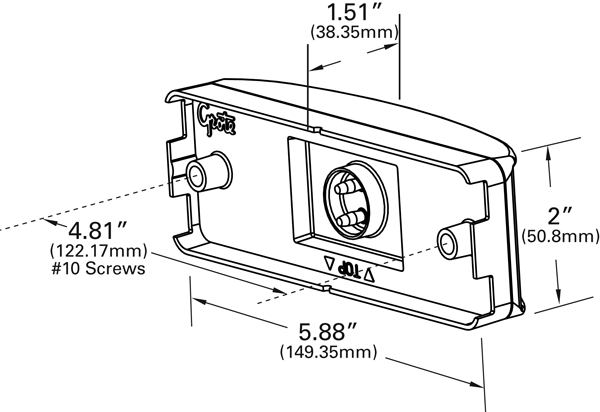

    • 78403 - drawing thumbnail

    Compare

    0 Product Added

    Compare

    Quickly compare up to 5 Grote products...

    pdf spinner


    Add more products to compare

    Technical specifications
    • Material: Acrylic Lens, Polycarbonate Housing
    • Color: Yellow
    • Lens Color: Yellow
    • Housing Color: White
    • Amperage: .06A
    • Mounting Type: Bracket
    • Connection Type: Male Pin
    • Regulations: FMVSS 108
    • Functions: P2, PC
    • VMRS: 034-004-253
    Features & benefits
    • Hermetic lens-to-housing seal
    • Meets PC function only when mounted at a 45° angle
    • Not designed for vertical mount
    • Encapsulant potting for total circuit-board protection
    • Tin-plated, solid-brass terminals are sealed to housing, to resist corrosion and eliminate failure-causing leak paths

    Replacements, Tools & Accessories

    Bracket 4 3/4" Corner Radius Bracket, Gray
    43050
     Pigtail Double-Seal Lamp Pigtail, 6" Long
    66911
     Pigtail Double-Seal Lamp Pigtail, 6" Long, Chassis Ground
    66910
     Pigtail Turtleback® II Double-Seal Lamp Pigtail, 2 1/2" Long
    67070
     Pigtail Turtleback® II Double-Seal Light Pigtail, Two-Wire, Standard .180 Male
    67071
