SuperNova® Sealed Turtleback® II LED Clearance Marker Lights

Grote's SuperNova® Sealed Turtleback® II LED Clearance Marker Lights have encapsulant potting for total circuit-board protection and meets PC function only when mounted at a 45° angle.
Grote Loading Ajax Spinner

47072Built-in Reflector, Male Pin

47072Built-in Reflector, Male Pin

  • supernova sealed turtleback ii led clearance marker light reflector male red thumbnail

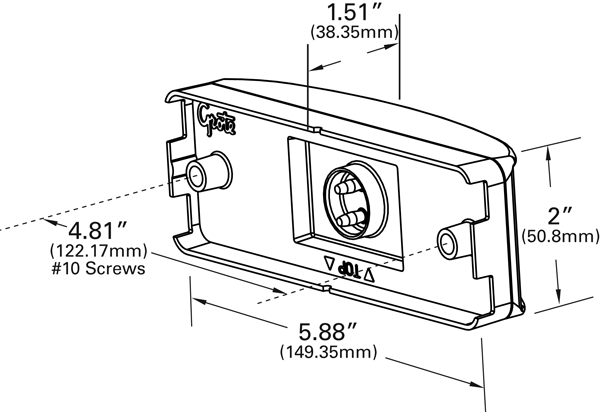

  • 47072 - drawing thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polycarbonate Housing, Acrylic Lens
  • Color: Red
  • Lens Color: Red
  • Housing Color: White
  • Amperage: .06A
  • Mounting Type: Bracket
  • Connection Type: Male Pin
  • Regulations: FMVSS 108
  • Functions: PC, P2, A
  • VMRS: 034-004-253
  • Product Type: Clearance Marker
  • Product Line: Turtleback®, SuperNova®
  • Shape: Rectangular
  • Warranty: 10 Years
Features & benefits
  • Hermetic lens-to-housing seal
  • Meets PC function only when mounted at a 45° angle
  • Not designed for vertical mount
  • Encapsulant potting for total circuit-board protection
  • Tin-plated, solid-brass terminals are sealed to housing, to resist corrosion and eliminate failure-causing leak paths
Find a Local Distributor

Replacements, Tools & Accessories

Bracket 4 3/4" Corner Radius Bracket, Gray
43050
 Pigtail 66911
66911
 Pigtail 66910
66910
 Pigtail 67070
67070
 Pigtail 67071
67071
