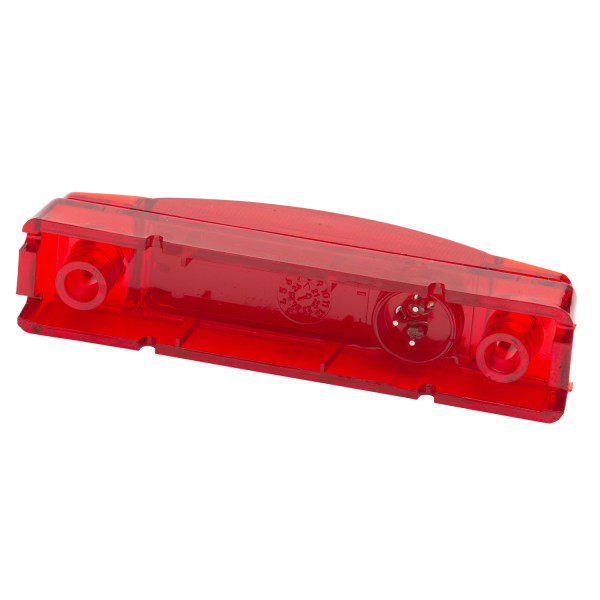

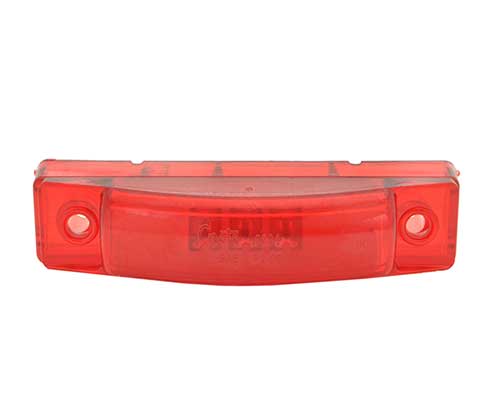

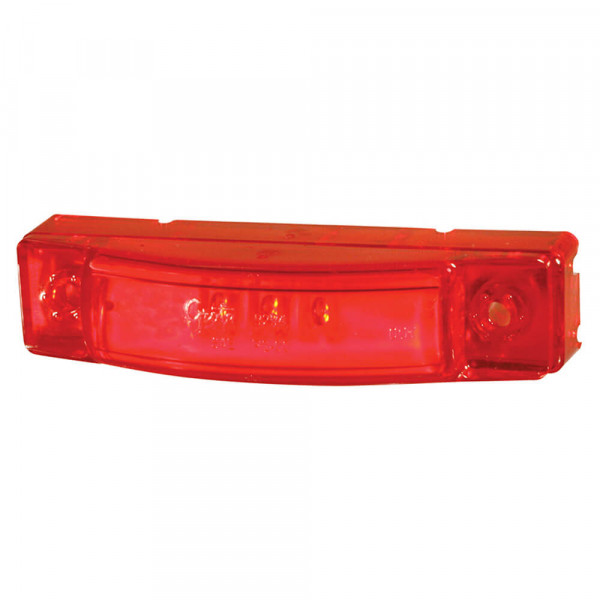

SuperNova® 3" Center Thin-Line Dual Intensity LED Clearance Marker Lights

Grote's SuperNova® 3" Center Thin-Line Dual Intensity LED Clearance Marker Lights have a long-life lamp featuring a replaceable lens and a circuit board encapsulated in potting to protect against vibration and water intrusion.
Grote Loading Ajax Spinner

49252

49252

  • 49252 360 thumbnail
  • 49252 thumbnail
  • 49252 - drawing thumbnail
  • 49252 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polycarbonate Housing, Polycarbonate Len
  • Color: Red
  • Lens Color: Red
  • Housing Color: Red
  • Amperage: .06A
  • Mounting Type: Screw
  • Connection Type: Male Pin
  • Size: 2"
  • Regulations: FMVSS 108
  • Functions: P2, PC
  • VMRS: 034-004-253
  • Product Type: Clearance Marker
  • Style: Thin-Line
  • Product Line: SuperNova®
  • Shape: Rectangular
  • Warranty: 10 Years
Features & benefits

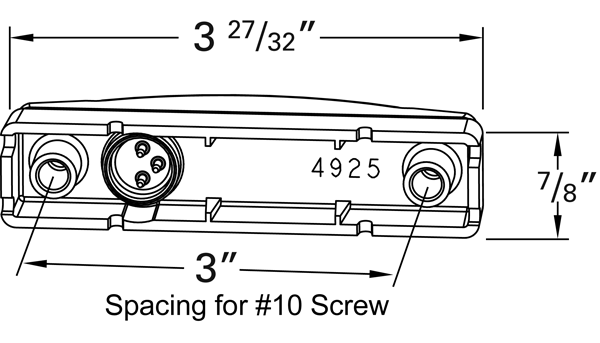

  • 3" mounting center
  • Compact size for narrow mounting locations
  • Multi-function lamp enhances signaling visibility and safety
  • Lamp functions as a marker, clearance, identification and supplemental high mount stop or turn lamp
  • Long-life lamp features replaceable lens and a circuit board encapsulated in potting to protect against vibration and water intrusion
Find a Local Distributor

Replacements, Tools & Accessories

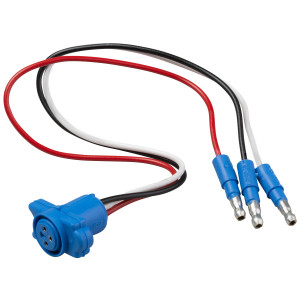

Pigtail 66870
66870
