2 1/2" Round Clearance Marker Lights

With twist-on mounting for easy installation, Grote's 2 1/2" Round clearance marker lights fit all popular mounting and grommets.
Grote Loading Ajax Spinner

45833Built-In Reflector, 12V

45833Built-In Reflector, 12V

  • 45833 360 thumbnail
  • 45833 thumbnail

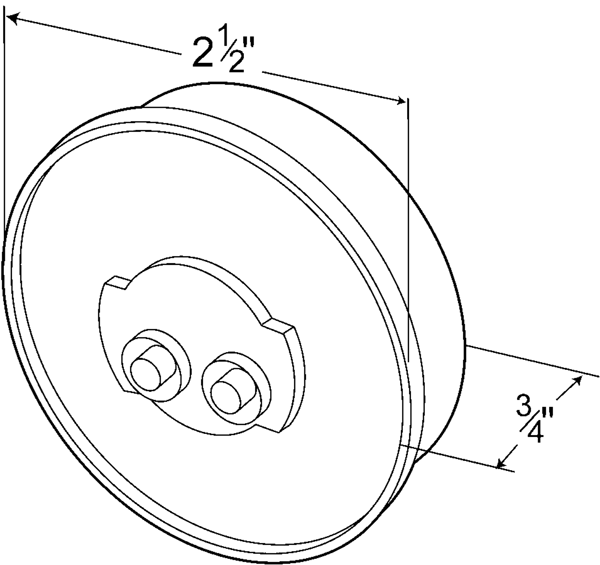

  • 45833 - drawing thumbnail
  • 45833 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

LED Icon

G1003
Hi Count® 2 1/2" LED Clearance Marker Light

Technical specifications
  • Material: Polycarbonate Lens, Polycarbonate Housing
  • Color: Amber
  • Lens Color: Amber
  • Amperage: .33A
  • Mounting Type: Grommet, Bracket
  • Connection Type: PL-10
  • Size: 2½"
  • Regulations: FMVSS 108
  • Functions: A, P2, P3
  • Bulb: 2 CP
  • VMRS: 034-004-021
  • Diameter: 2.5"
  • Product Type: Clearance Marker
  • Shape: Round
  • Warranty: 1 Year
Features & benefits
  • Features a 12,000+ hour bulb
  • 12-volt version features a 12,000+ hour bulb
  • Hermetic lens to housing seal
  • Optic version only, meets PC function only when mounted at a 45° angle
  • Twist-on mounting for easy installation
  • Fits all popular mountings and grommets
Find a Local Distributor

Replacements, Tools & Accessories

Bracket 43690
43690
 Bracket 43160
43160
 Bracket 43162
43162
 Bracket 43163
43163
 Bracket 43512
43512
 Bracket 43522
43522
 Bracket Bar Lamp Bracket For 2" & 2 1/2" Round Lights, Black
49140
 Bracket 93750
93750
 Bracket 42180
42180
 Grommet 91400
91400
 Grommet 91410
91410
 Grommet 92070
92070
 Grommet 91890
91890
 Grommet 91880
91880
 Pigtail 66851
66851
 Pigtail 66850
66850
 Pigtail 67001
67001
 Pigtail 67050
67050
 Pigtail 66800
66800
 Pigtail 66840
66840
 Pigtail 66801
66801
