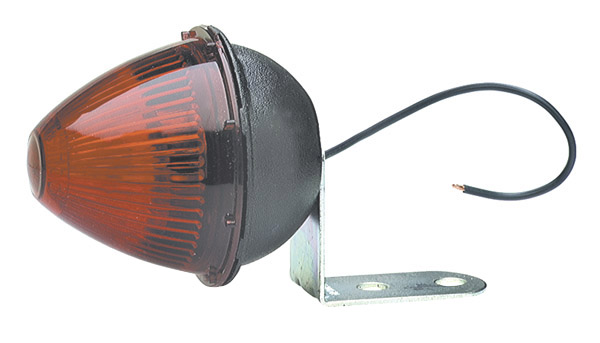

Beehive Clearance Marker Lights with Fixed-Angle Mounting Bracket

Grote's Beehive Clearance Marker Lights have a wide light diffusion optic design with a fade-resistant, snap-on acrylic lens and meets PC function when mounted at a 45° angle.
Grote Loading Ajax Spinner



  • beehive clearance marker light angle bracket red 360 thumbnail
  • beehive clearance marker light angle bracket red thumbnail
  • 45022 - drawing thumbnail


0 Product Added


Quickly compare up to 5 Grote products...

pdf spinner

Add more products to compare

Technical specifications
  • Material: Acrylic Lens, ABS Housing, Steel Bracket
  • Color: Red
  • Lens Color: Red
  • Housing Color: Black
  • Amperage: .6A
  • Mounting Type: Bracket
  • Connection Type: Blunt Cut
  • Regulations: FMVSS 108
  • Functions: P2, PC
  • Bulb: #67, 4 CP
  • VMRS: 034-004-021
  • # of Wires: 1
  • Bulk Pack #45022-3: 50
Features & benefits
  • Wide light diffusion optic design
  • Bracket is permanently attached
  • Fade-resistant, snap-on acrylic lens
  • Meets PC function when mounted at a 45° angle
