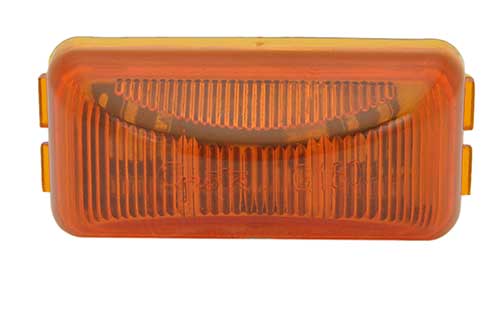

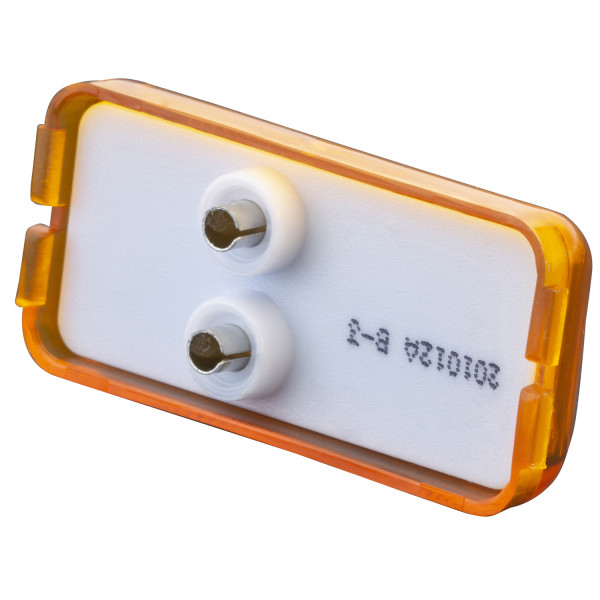

3" Hi Count® 3-Diode LED Clearance Marker Lights

Grote's 3" Clearance Marker Lights are designed to fit most popular mounts and grommets and uses the UBS double-seal pigtail.
Grote Loading Ajax Spinner

G1503

G1503

  • G1503 360 thumbnail
  • G1503 thumbnail

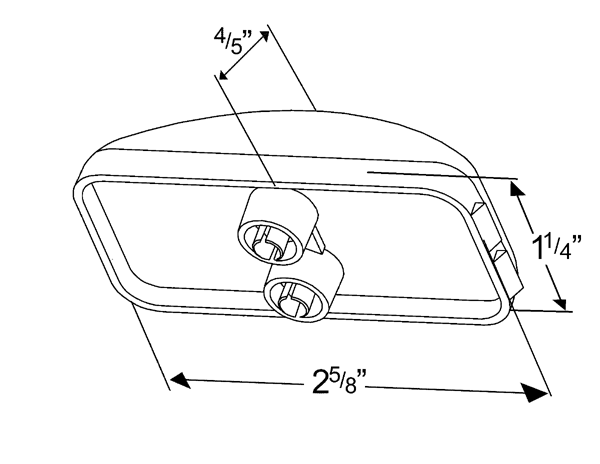

  • g1503 - drawing thumbnail
  • G1503 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polycarbonate
  • Color: Amber
  • Lens Color: Amber
  • Amperage: .06A
  • Mounting Type: Grommet, Bracket
  • Connection Type: PL-10
  • Size: 3"
  • Regulations: FMVSS 108
  • Functions: P2
  • VMRS: 034-004-253
  • Product Type: Clearance Marker
  • Product Line: Hi Count®
  • Shape: Rectangular
  • Warranty: 2 Years
  • Bulk Pack #G1503-3: 48
Features & benefits
  • Hermetic lens-to-housing seal
  • Fits popular mountings and grommets
  • Uses the same UBS double-seal pigtail
  • Incandescent version for a quick retrofit
