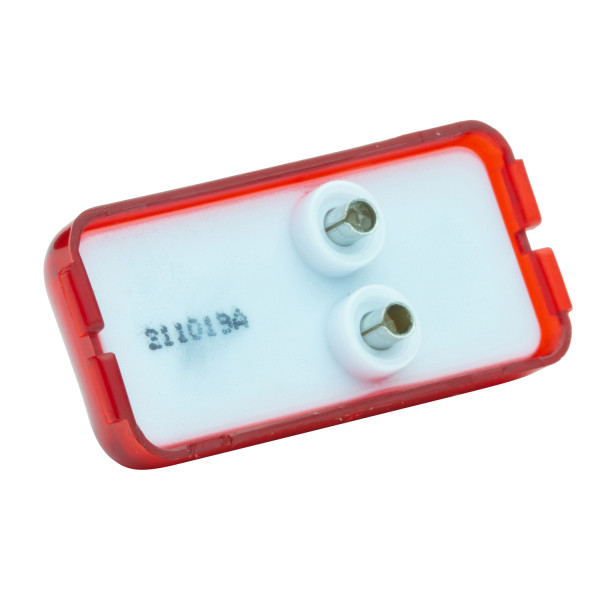

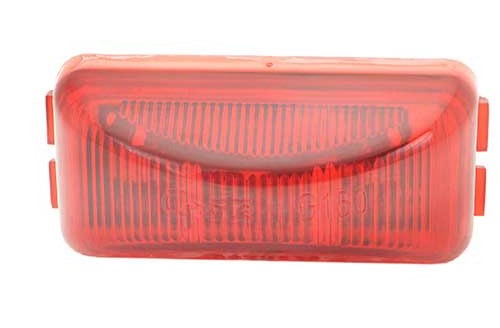

3" Hi Count® 3-Diode LED Clearance Marker Lights

Grote's 3" Clearance Marker Lights are designed to fit most popular mounts and grommets and uses the UBS double-seal pigtail.
Grote Loading Ajax Spinner

G1502

G1502

  • G1502 360 thumbnail
  • G1502 thumbnail

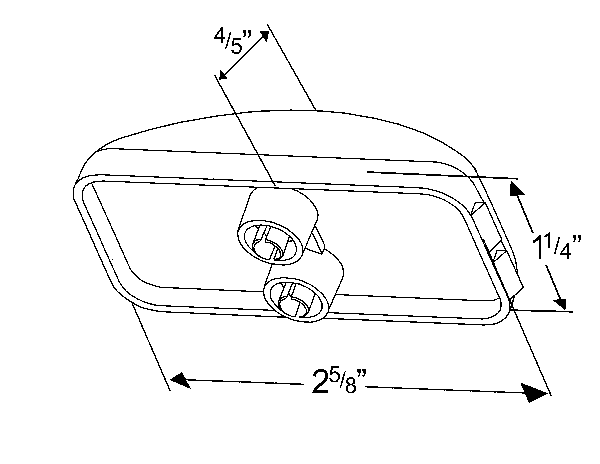

  • g1502 - drawing thumbnail
  • G1502 thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polycarbonate
  • Color: Red
  • Lens Color: Red
  • Amperage: 0.06 A
  • Mounting Type: Grommet, Bracket
  • Connection Type: PL-10
  • Size: 3"
  • Regulations: FMVSS 108
  • Functions: P2
  • VMRS: 034-004-253
  • Product Type: Clearance Marker
  • Product Line: Hi Count®
  • Shape: Rectangular
  • Warranty: 2 Years
  • Bulk Pack #G1502-3: 48
Features & benefits
  • Hermetic lens-to-housing seal
  • Fits popular mountings and grommets
  • Uses the same UBS double-seal pigtail
  • Incandescent version for a quick retrofit
Find a Local Distributor

Replacements, Tools & Accessories

Bracket 43370
43370
 Bracket Bracket For Small Rectangular Lights, Gray Kit
43970
 Bracket 43980
43980
 Grommet 91380
91380
 Pigtail 66851
66851
 Pigtail 66850
66850
 Pigtail 67001
67001
 Pigtail 66800
66800
 Pigtail 66801
66801
 Pigtail 66840
66840
 Pigtail 67050
67050
