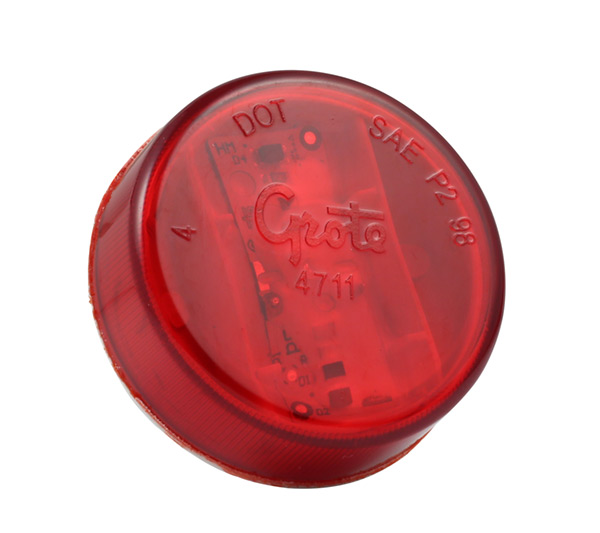

SuperNova® 2" LED Clearance Marker Lights

Grote's SuperNova® 2" LED Clearance Marker Lights with encapsulant potting for total circuit board protection with tin-plated, solid-brass terminals sealed to resist corrosion.
Grote Loading Ajax Spinner

47112Red

47112Red

  • red supernova 2 led clearance light retail thumbnail
  • drawing of grote led clearance light thumbnail

Compare

0 Product Added

Compare

Quickly compare up to 5 Grote products...

pdf spinner


Building product information

Loading, please wait

Please wait a moment...

Add more products to compare

Technical specifications
  • Material: Polycarbonate Lens, Polycarbonate Housing
  • Color: Red
  • Lens Color: Red
  • Amperage: .06A
  • Mounting Type: Grommet, Bracket
  • Connection Type: PL-10
  • Size: 2"
  • Height: .63"
  • Regulations: FMVSS 108
  • Functions: P2, P3
  • VMRS: 034-004-253
  • Diameter: 2"
  • Product Type: Clearance Marker
  • Product Line: SuperNova®
  • Shape: Round
  • Warranty: 10 Years
  • Bulk Pack #47112-3: 48
Features & benefits
  • Fits all popular mountings and grommets
  • Hermetic lens-to-housing seal
  • Encapsulant potting for total circuit board protection
  • Meets PC function when mounted at a 45° angle
  • Tin-plated, solid-brass terminals are sealed to housing, to resist corrosion and eliminate failure-causing leak paths
  • Uses same UBS double-seal pigtail as incandescent for quick retrofit
Find a Local Distributor

Replacements, Tools & Accessories

Bracket 42180
42180
 Bracket 43532
43532
 Bracket Bar Lamp Bracket For 2" & 2 1/2" Round Lights, Black
49140
 Bracket 43690
43690
 Bracket 43760
43760
 Bracket 43150
43150
 Bracket 43152
43152
 Bracket 43153
43153
 Grommet 92120
92120
 Grommet 92150
92150
 Grommet 93760
93760
 Pigtail 67001
67001
 Pigtail 66850
66850
 Pigtail 66851
66851
 Pigtail 66801
66801
 Pigtail 67050
67050
 Pigtail 66840
66840
 Pigtail 66800
66800
